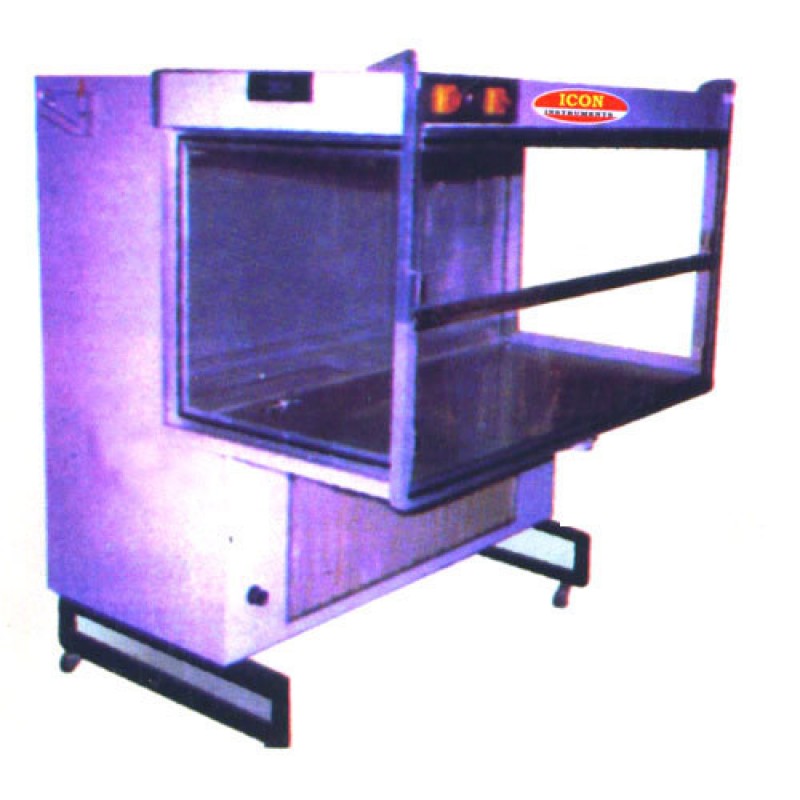

Horizontal Laminar Flow Cabinet

Product Details :

We are engaged in offering wide range of Horizontal Laminar Flow Cabinet which is designed to meet the requirement of US Federal Standard 209 B (BS 5295). The cabinets are designed using thick board of sunmica in order to provide particle free air. Epoxy paint of the interior surface ensures longer life and the work table made using thick board is sunmica clad at the top. Framed thick and transparent plexi glass is used to make side panels of the unit. Fitted with pre filter the unit is made to pass through highly effective HEPA (High Efficiency Particular Air)

The specifications include:

• Filters have efficiency rating of 99.99% with cold DOP and 99.97 % with hot DOP. This helps in retaining air borne particles of size 0.3 micron and larger
• The use of dynamic machine helps to balance the blower and motor assembly statically and dynamically
• The ISI marked motor of ¼ H.R capacity offers less noise and the working area is illuminated by fluorescent lighting
• Suitable height of the working table provides comfortable working position to the operator to work on 220/230 volts AC supply
• Built in germicidal light, cock for gas, air or vacuum line etc the unit is supplied completely with sunmica table top HEPA filters and pre filters Besides, are also supplied with fluorescent illumination transparent front door and static pressure manometer
