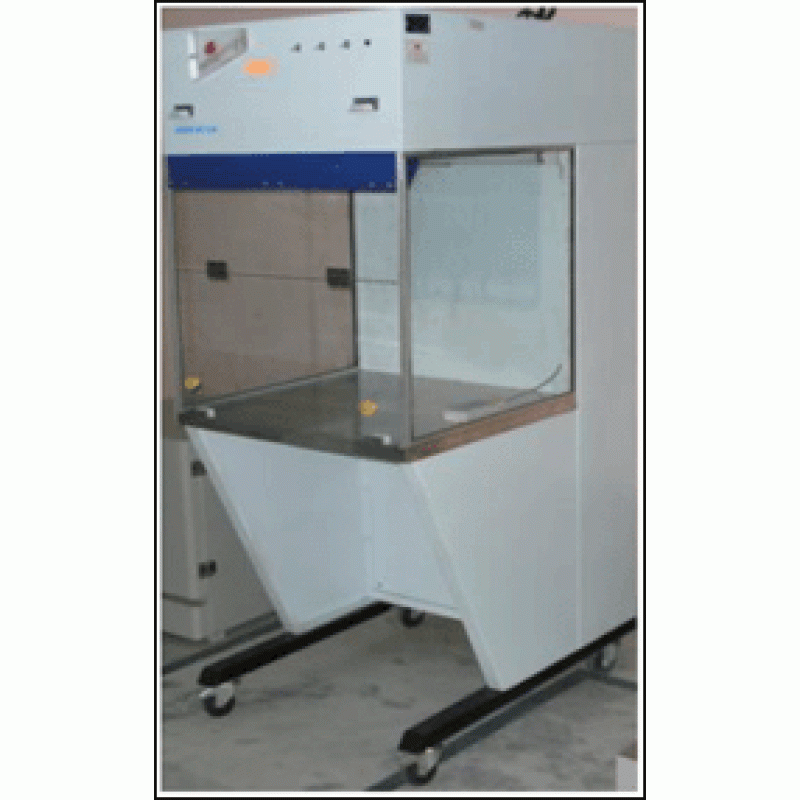

LAMINAR AIR FLOW 222
Product Details :
Name of Equipment: | Laminar Air Flow | ||
Make: | “Authentic” | ||
Model No.: | LAF222 | ||
Size: | 2’ x 2’ x 2’ | ||

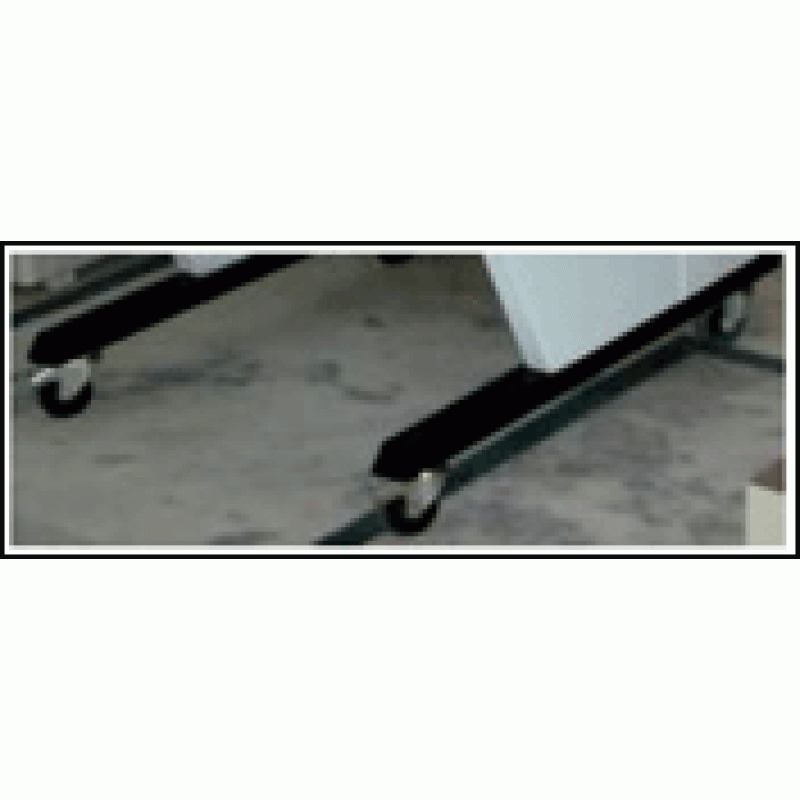

Features: | Floor model, well-lighted, low vibration and noise, easy to maneuver due to castor wheel provision, with brake pedal. | ||
Construction: | Constructed of SS/g GI sheet, which is termite & insect proof, fire & weather resistant covered with high quality & high pressure white laminated sheet from outside and painted with corrosion resistant & antifungal epoxy paint from inside. | ||
Cabinet: | Stainless Steel sheet of 20 SWG lining. | ||
Front Panels: | Removable transparent scratch resistant sheet of 6mm thickness. | ||
Side Panels: | Fixed transparent scratch resistant sheet of 6mm thickness mounted with anodized aluminum angle. | ||
Front Door: | Made of perplex sheet with anodized aluminum frames & lock, having arrangement to work with half open door. | ||
Work Table: | Stainless Steel of 20 SWG lining. | ||
Pre-filters: | 2 Pre-filters | ||
Hepafilters: | No. 1, Size–48”x24”x 6”, confirms to class 100 levels of cleanliness as per U.S. Federal Standard 209B with filtration efficiency 99.9% removal of air born particles as contaminant. | ||
Motor Blower: | Dynamically balanced & specially constructed to suit low noise and vibration with adjustable speed Motor (2x 1/6 HP). | ||
Air Velocity: | Double filtered laminar flow air blowing through the worktable at a nominal controlled velocity of approx. 90ft/per minute. | ||
Lighting: | Fluorescent tube of 4’ length | ||
Ultra Violet light source: | Fitted with a suitable germicidal UV tube 3’ length. | ||
Power Supply: | 220/240 volts, 50 cycles, single phase, provided with both 5 Amp & 15 Amp plug unit inside the cabinet. | ||
Line Voltage Corrector: | Copper wound single phase automatic line voltage corrector. | ||
Manometer: | Provided with static pressure manometer accurately calibrated to assess static pressure Movable in HEPA chamber |
