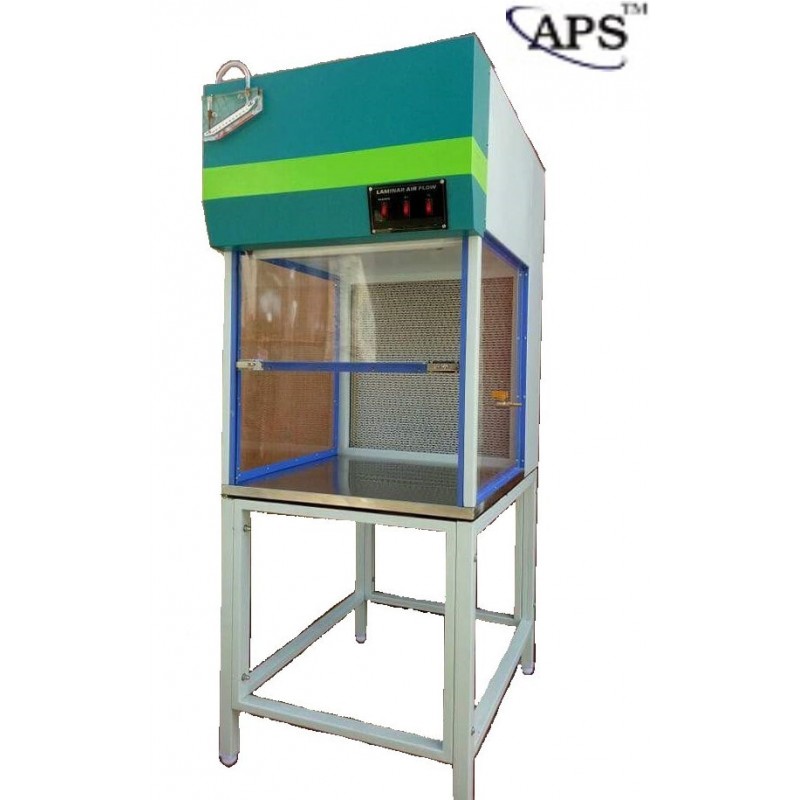

LAMINAR AIR FLOW HORIZONTAL
Product Details:
Laminar flow cabinet (horizontal / vertical) designed so as to meet the requirements of US federal standard 209 B (BS 5295) providing particle free air to meet class 100 conditions. The unit is fitted with pre-filter and HEPA filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA filters having efficiency rating as high as 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron and larger. Using a dynamic machine, the blower and motor assembly is statically and dynamically balanced ISI marked motor of 1/4 HP capacity operates with minimum noise level less than 60 dB on a Scale. The working area is illuminated by fluorescent lighting fitted to the unit. Height of the working table provides comfortable “SIT DOWN” working position for the operator.
Digital Model
* The cabinet are fabricated of thick mild steel / stainless steel laminated by cold rolled steel duly powder coated or SS as per requirement
* Work table is made of SS with mirror finish which makes it easy to clean, washable & chemical resistive, corrosive free, Leak proof construction.
* Side panels are made out of thick transparent plexus glass / acrylic sheet duly framed.
* High efficiency pre filter
* HEPA filter efficiency- 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron
* Pressure manometer to gauge the pressure drop in the unit
* Built in two number U.V. Germicidal Light for disinfection and fluorescent light for work space illumination (60 W, 800 Lumens)
* Utility- gas/air cock and multi point electric socket.
* Transparent UV protected front door glass.
* Air flow Rate: 0.35 to 0.75 m/sec.
* Velocity should be: Approx. 90-100* FPM higher velocity available on request
* Vibration level <2.5 micron>
* Fitted with magnehelic differentialpressure gauge
* Castor wheels for ease of movement.
* Works on 230V AC supply
Model | APS-LAF-H -010 | APS-LAF-H-011 | APS-LAF-H -012 | APS-LAF-H-013 | APS-LAF-H-014 |
Size (feet) | 2' x 2' x 2' | 3' x 2' x 2' | 4' x 2' x 2' | 6' x 2' x 2' | 8' x 2' x 2' |
Size of HEPA filter | 2' x 2' x 6” | 3' x 2' x 6” | 4' x 2' x 6” | 3' x 2' x 6” | 4' x 2' x 6” |
No of HEPA filters | 1 | 1 | 1 | 2 | 2 |
No of pre filters | 1 | 1 | 1 | 2 | 2 |
Illumination | 1 x 20 W | 1 x 20 W | 2 x 20 W | 2 x 40 W | 4 x 40 W |
UV Germicidal light | 1' x 1½' | 1' x 1½' | 1' x 3' | 2' x 3' | 2' x 3' |
