Laminar Air Flow

Product Details:

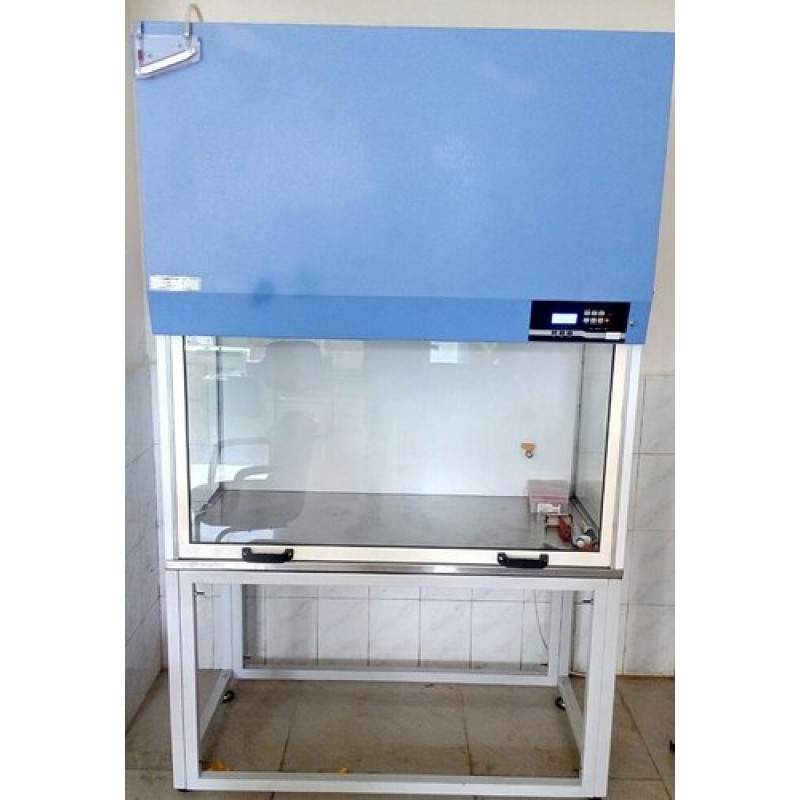

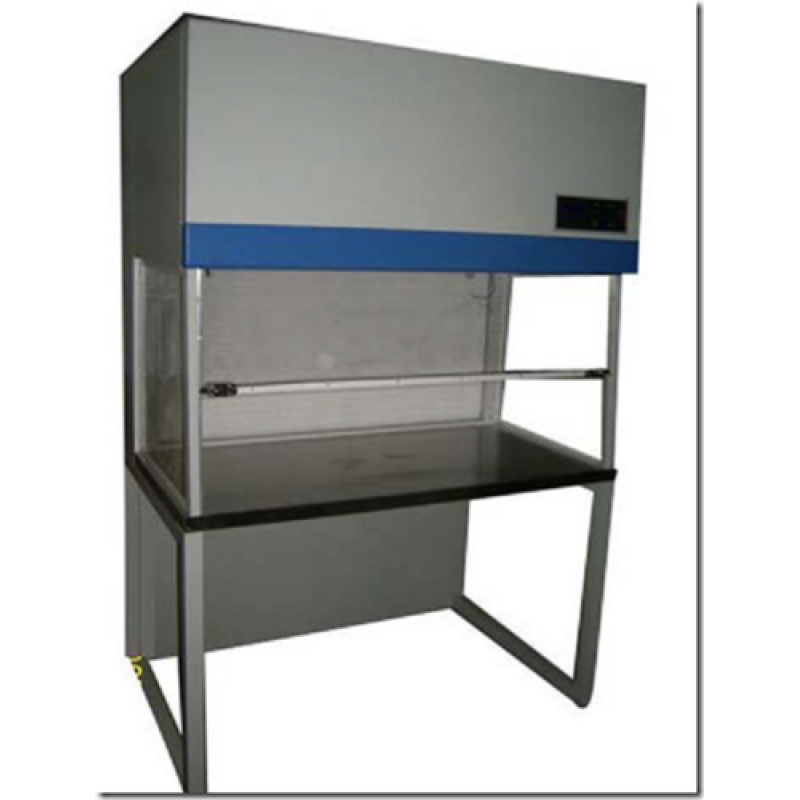

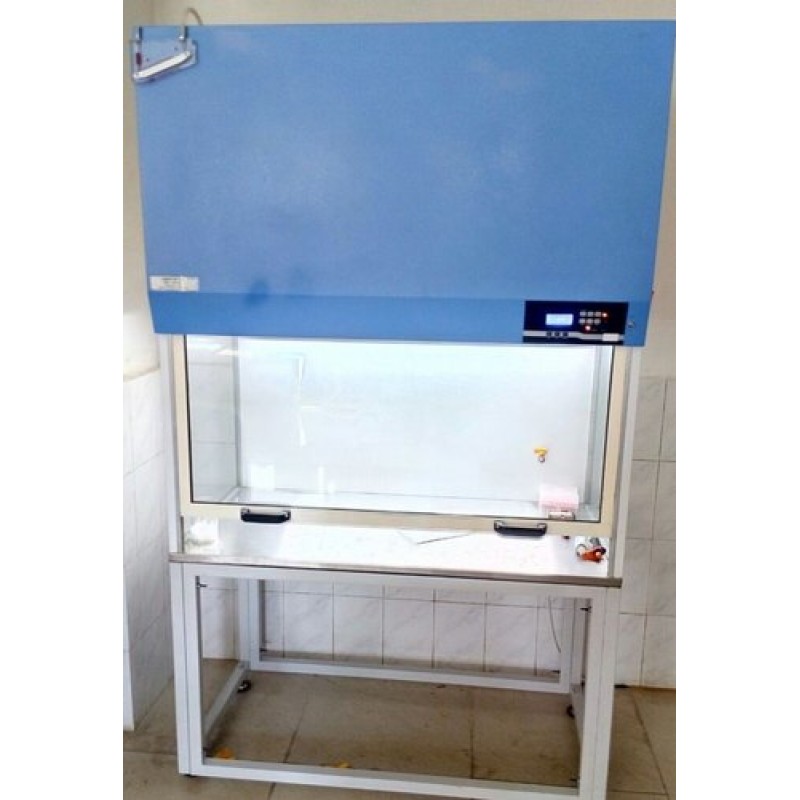

LAMINAR AIR FLOW (Outer MS & Inner SS-304 Grade)
MODEL: AI-LAF

Make: Amaze Instruments

Designed So As To Meet The Requirement Of Us Federal Standard 209 B (Bs 5295) Providing Particle Free Air To Meet Class 100 Conditions.

Specification:

• Confirm International Standard Iso-14644-1.
• Basic Material Is mild steel
• Working Table Is Made Of Stainless Steel Sheet (Ss-304 Grade).
• The Highly Efficient Hepa Filter Maintains The Optimum Cleanliness And Purity.
• The Pre-Filter Fitted Extends The Life Of Hepa Filter Drastically.
• Air Drawn Through Pre-Filter Is Made To Pass Through Highly Effective Hepa (High Efficiency Particular Air) Filters Having Efficiency Rating As High As 99.99% ,Thus Retaining All Air-Borne Particles Of Size 0.3 Micron And Larger.
• Horizontal  Air Flow.
• Working Area Is Illuminated By Fluorescent Tube Fitted To The Unit.
• The Blower And Marathon Motor Assembly Is Statically And Dynamically Balanced Of 1/4 H.P. Capacity Operates With Minimum Noise Level.
• Height Of The Working Table Provides Comfortable "Sit Down" Working Position For The Operator.
• Supplied Complete With Static Pressure Manometer.
• Built In U.V. Germicidal Light And Cock For Gas, Air Or Vacuum Line.
• Separate Switch Operation For Blower, Uv & Fl Light And Mains.
• Velocity At The Output Of Hepa Is 90 20 Fpm
• Supplied Complete With Cord & Plug To Work On Single Phase 220 / 230 Volts A.C. Supply
• Working Dimension (Feet) : 3x2x2
