Laminar Air Flow
Product Details :
Is It Portable | Portable |
Air Volume | 400 m3/h |
Structure | Floor Standing |
Working Dimensions | 1200 x 600 mm |
Illumination | 2 x 40 watts |

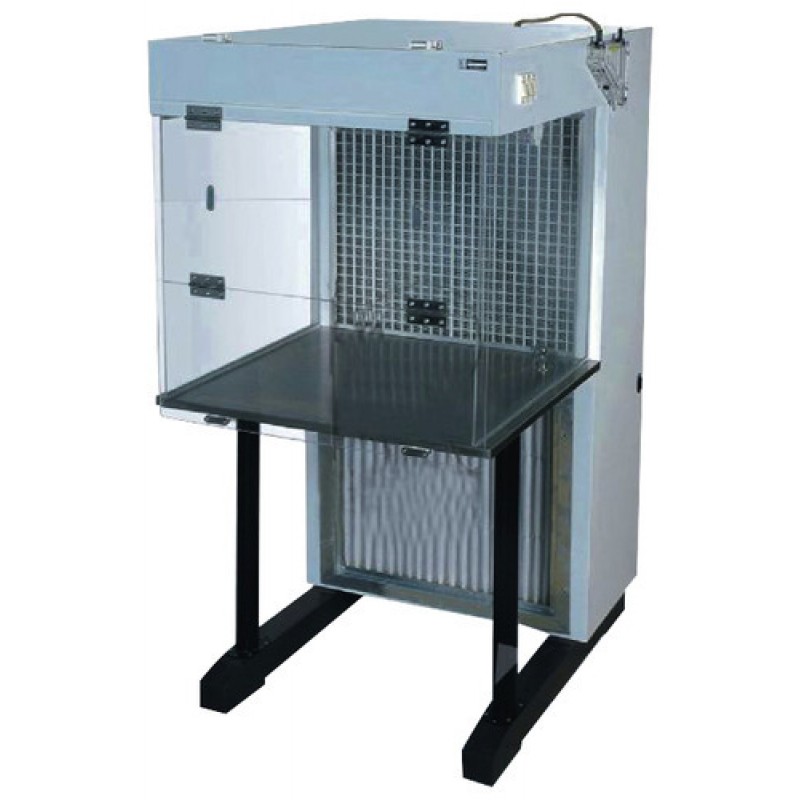

Laminar Air Flow - Horizontal RLAH-58 Series
Structure made of 19 mm Thick Ply board covered with melamine lamination finish or mild steel duly powder coated or stainless steel. Work bench of perforated stainless steel in all models. Sides of work bench covered with transparent acrylic sheet/melamine. Front acrylic door of collapsible type. Properly balanced blowers fitted on H.P. Electric motor provided on the top portion to supply sufficient air to HEPA filter. HEPA filter provided vertically on back of the work bench to provide clean air to the work bench horizontally. HEPA filter efficiency 99.97%, partial retention >0.3 micron. Pre-filters efficiency 90.0%, partial retention >5.0 micron. One fluorescent tube and one U.V. Germicidal tube provided over work bench. Cock for gas on work bench. Static pressure manometer fitted on top. Laminar Air Flow Horizontal Blowers, motor and pre-filters fitted in lower portion of the cabinet.
Made of thick play board covered with white sunmica & epoxy painted inside. Laminar flow fitted with microprocessor control digital display with filter failure alarms.
Model Sizes
- RLAH-58-01 60x60x60 mm.
- RLAH-58-02 90x60x60 mm.
- RLAH-58-03 120x60x60 mm.
- RLAH-58-04 180x60x60 mm.
