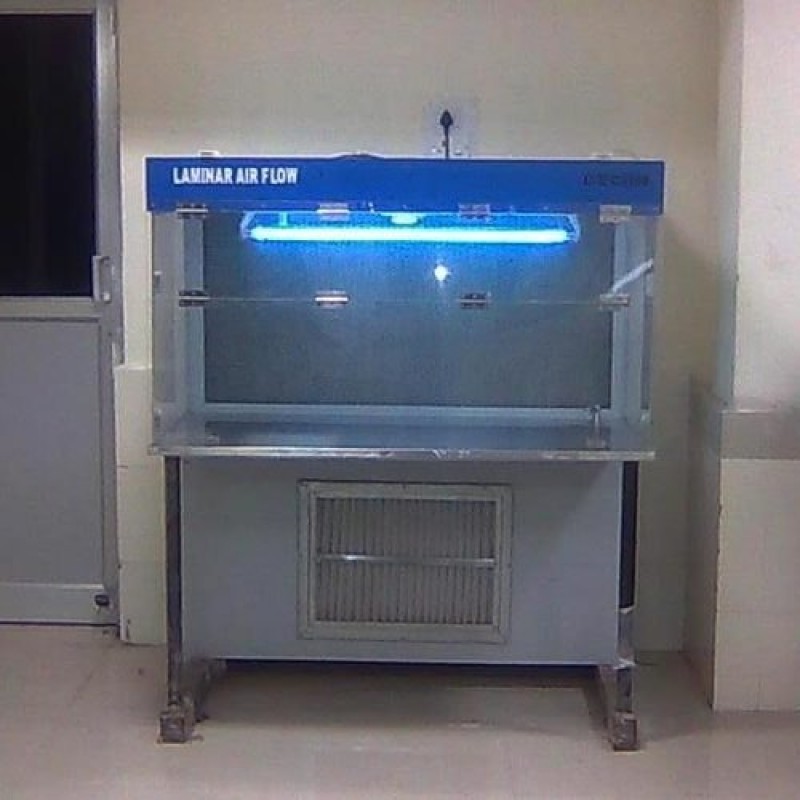

Laminar Air Flow

Product Details :

LAMINAR FLOW CABINET HORIZONTAL /VERTICAL TYPE - (M.S, S.S Wood)

Make- Bhagwati

Features:

• All Laminar Flow Cabinet are basically constructed out of DURO BOARD teak wood, which is termite and insect proof, fire and weather resistant.
• Interior are epoxy painted.
• Work table is made of mica top (optional) S.S. top and side panels of 6mm thick transparent flexi glass duly framed.
• Laminar flow principle involves doubles filtration of air.
• Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-bone particles of size 0.3 micron and larger. Double filtered air blow in laminar flow through the work table at designed velocity of 90 ft/min +/-20%.
• Blower Motor Assembly: Statically and dynamically balanced, direct drive, sized to provide adequate air flow volume over the entire surface of HEPA filter. Fitted with ¼ HP Motor and operates with minimum noise level i.e. lower than 65 db on scale and Vibration less than 2.5 um. (0.0001 deg).
• Work area properly illuminated by diffused, glare free fluorescent light supplied with Gas inlet, Front Door, Manometer, wheel for easy movement, UV Lamp.
• 230V, Single phase, 50 Hz AC supply.

Technical Specification:

LAMINAR FLOW CABINET - HOIRIZONTAL / VERTICAL (M.S, S.S Wood)

Make-‘Loyal Instruments’

Model No

• LI291
• LI292
• LI293

Working Area

• 2’x2’x2’
• 3’x2’x2’
• 4’x2’x2’

Size of HEPA Filter

• 2’x2’x6”
• 3’x2’x6”
• 4’x2’x6”

No. of HEPA Filter

• 1
• 1
• 1

No. of Pre Filter

• 1
• 2
• 2

Illumination

• 1x20w
• 1x20w
• 2x40w
