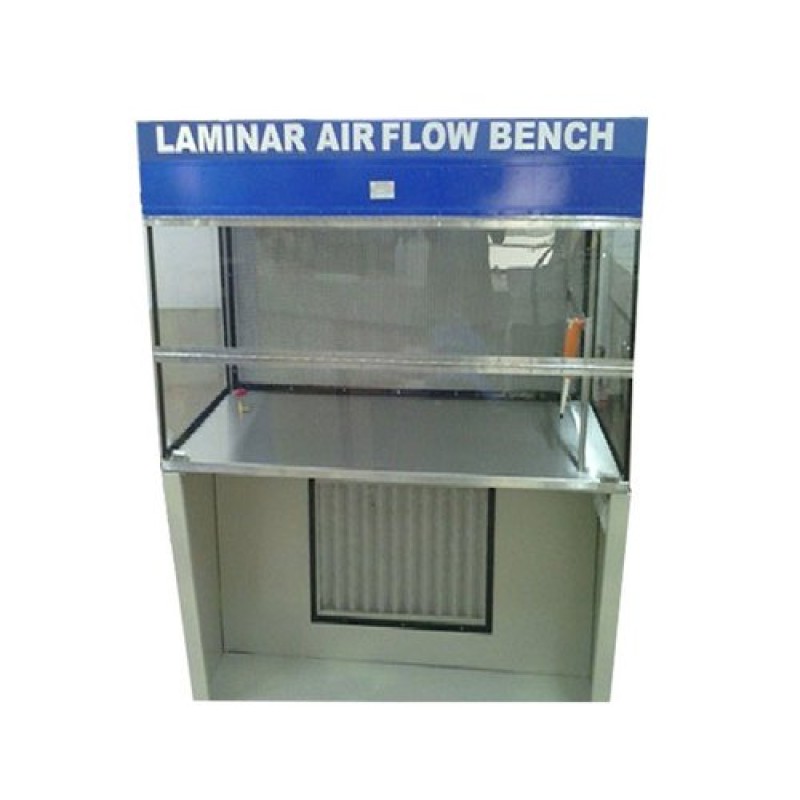

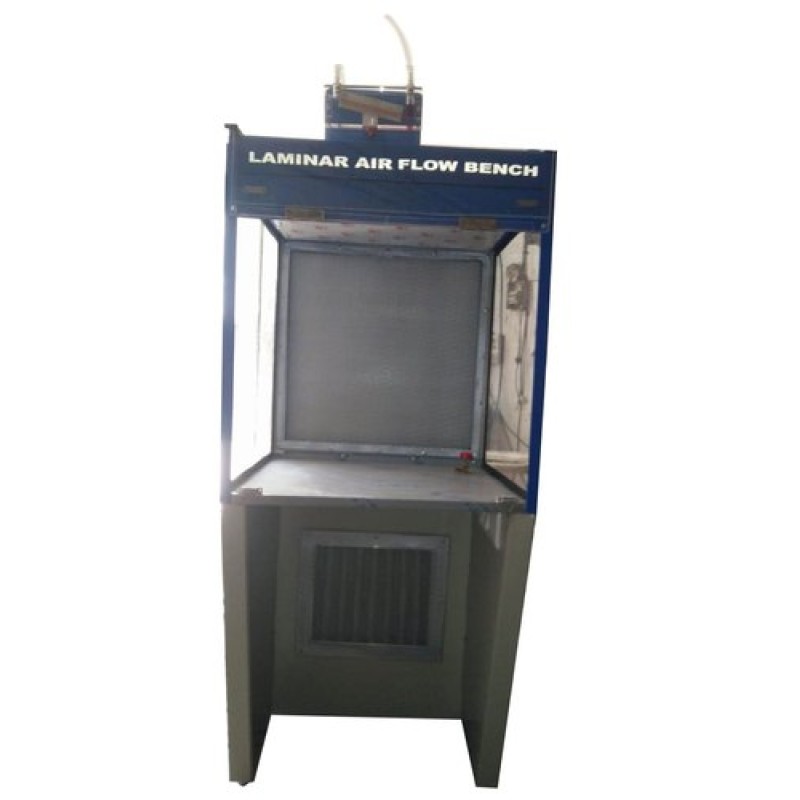

Laminar Air Flow Cabinets
Product Details :
| Power Supply | 220 volts / 50 Hz |
| Noise Level | 65 +-5 db |
| Illumination | 2 LED Light |
| Air Velocity | 0.45 m/s to 0.65 m |
| Air Flow Direction | Vertical / Horizontal |
| Air Filtration | Pre-Filter - 10 microns (washable),HEPA Filter Having Efficiency Of 99.997% Down on 0.3% Microns |
Description:
A laminar air flow workstation is a closed cabinet fitted with HEPA filtered air flow system. Here, laminar means unidirectional constant flow of air with almost no or minimal turbulence. The air flow velocity remains between 0.3 m/s to 0.5 m/s. The purpose of using such workstations in laboratory is to create particle and bacteria free working environment to carry out specialized work. As these units discharge air towards user, they provide no personal protection but product protection from room contaminants.
Laminar Air Flow Applications :
Laminar air flow systems are used in various applications such as Life Science Research, Microbiology, IVF and Histopathology / Pathology lab, Plant tissue and Cell culture and Pharmaceutical and Electronics industry, Educational Institute and many more.
Types Of Laminar Air Flow:
There are two types of laminar air flow one is horizontal and other is vertical. The difference between vertical and horizontal laminar flow is direction of air flow and placement of HEPA filter.
Vertical Laminar Air Flow:
In vertical flow cabinet, room air is entered in working area through HEPA filter fitted on top of the cabinet. Thus, air flows downward (vertically) towards work surface and leaves the cabinet sweeping out particles and bacteria.
Horizontal Laminar Air Flow:
Horizontal air flow cabinet is Maximum used in filed , room air is entered in working area through HEPA filter fitted on the back side of the cabinet. Filtered air flows horizontally towards the user creating sterile working environment.
Technical Specification:
- Construction : Complete Unit made of M.S. with powder coated, working table made of S.S. 304, front door : Manual folding type (Acrylic transparent), Side panels : Acrylic, Blower : Blower with Motor hang by heavy spring loaded for minimum vibration & noise.
- Air / gas cock
- Static pressure manometer
- Mains on/off switch
- Light on/off switch
- UV Light on/off switch
- Blower on/off switch
- Extra power plug on/off switch
- Standard fittingsOptional Accessories
- LCD display for velocity
- UV Hour meter
- Magnahelic gauge
- DOP HEPA filter testing
| WORKING AREA | HEPA SIZE | NO.OF PRE-FILTER |
|---|---|---|
| 2’ X 2’ X 2’ | 2’ X 2’ X 6” | 1 |
| 3’ X 2’ X 2’ | 3’ X 2’ X 6” | 1 |
| 4’X 2’ X 2’ | 4’ X 2’ X 6” | 2 |
| 6’X 2’ X 2’ | 6’ X 2’ X 6” | 2 |
