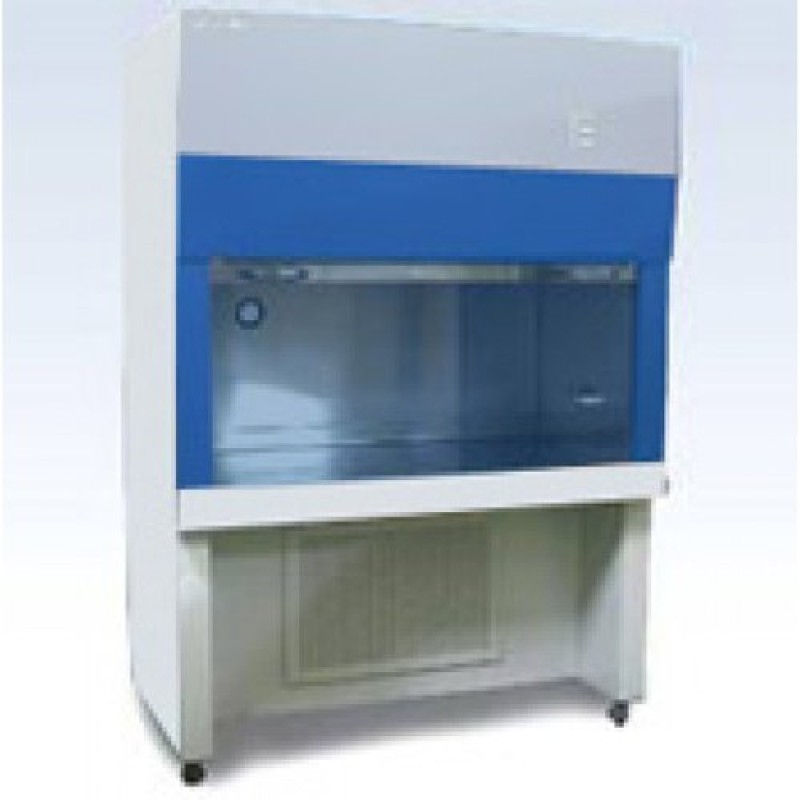

Laminar Air Flow
Product Details :
Brand | PSI |
Material | Stainless Steel |
Packaging Size | Available in 3 X 2 X 6 and 4 X 2 X 6 Inch |
Power | 1/4 HP |
Is It Portable | Non Portable |
I deal in | New Only |
Product Details :
Minimum Order Quantity | 1 Piece |
Phase | Single Phase |
Material Grade | SS304 |
Vibration | 2.5 um |
Noise Level | 65 dB |
Voltage (V) | 230 V AC |
Frequency (Hz) | 50 Hz |
Power (W) | 40 W |
PSI-045 Vertical Laminar Air Flow:
- We have to require the semiconsuctorcomprehensive range of high-performance vertical Laminar. Flow clean air cabinets. Modular construction, combining aesthetic appeal with functional utility and efficiency. These are designed to meet the filtration, illumination, Noise & Vibration requirements and US Federal Standard 209 B (BS 5295) Providing air to meet class 100 (class I) conditions, to the extent applicable.It is Ideal for microbiological manipulations. work with bioassays sterility testing & research work. vial filling & bunging operation in parenteral units & for general dry-processemiconductor industry etc. Provides a comfortable 'sit down' working position for the operators.
Construction :
- All laminar flow clean air cabinets are basically constructed out of thick CRC sheet - powder coated or thick teak wood board which is termite and insect proof. The work table is made of S.S.304 and side panels of thick transparent plexiglass.
Air Flow And Filtration:
- Laminar flow principle involves double filtration of air. Atmospheric air is drawn through pre-filter and is made to pass through highly effective HEPA (High-Efficiency Particulate Air) Filters having the efficiency rating as high as 99.99% with cold Dand 99.97% with hot DOP, thus retaining all airborne particles of size 0.3 micron and larger. Double filtered air blows in laminar flow through the work table at the DB designed velocity of 90 ft. min ± 20%.
Blower Motor Assembly:
- Duly balanced, direct drive motor blower units sized to provide adequate airflow volume over the entire surface of HEPA filter.Fitted with standard make motor and operates with minimum noise level i.e. lower than 6dB on scale and vibration less than 2.5 um.
Lighting:
- Work area properly illuminated by diffused, glare-free fluorescent Light.
