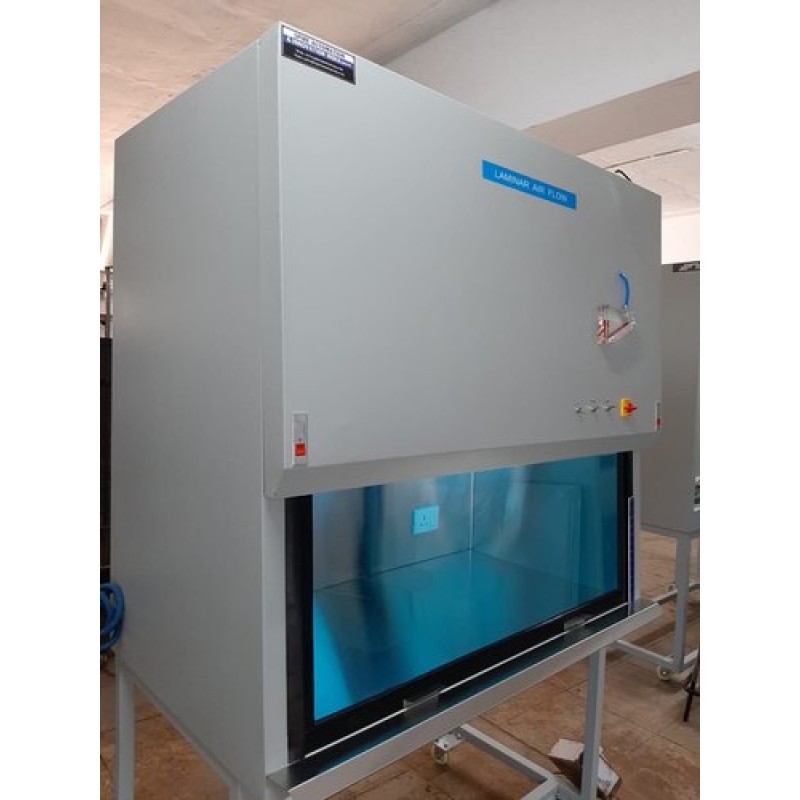

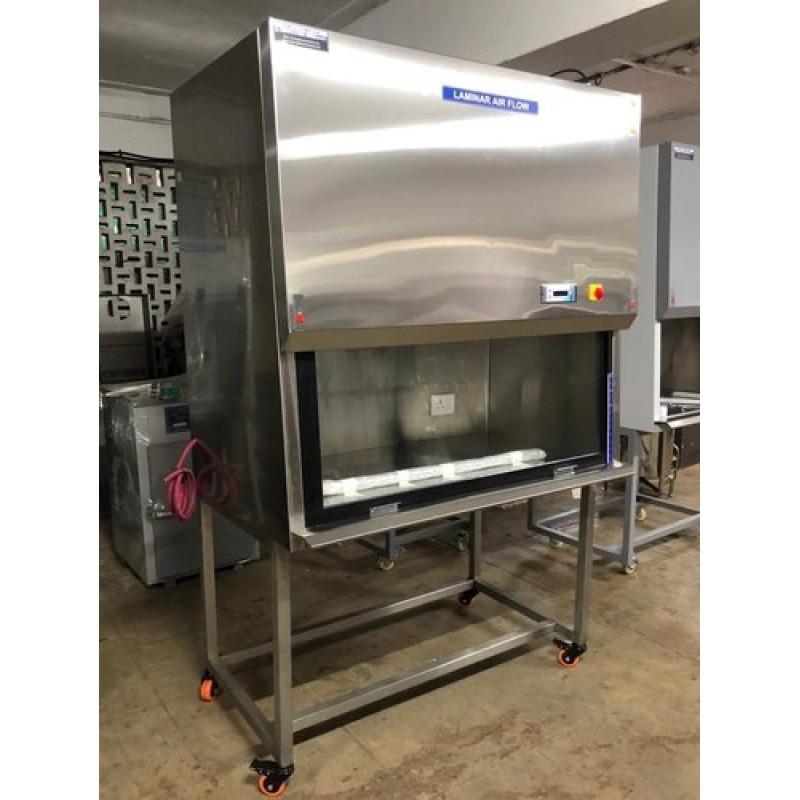

Laminar Air flow
Product Details :
Brand | Shanti |
Type | Vertical |
Material | it is available in GI Sheet powder coated and fully SS both |
Surface Finish | Powder Coated |
Usage/Application | Pharmaceutical Industry |
Voltage | 230 |
I Deal In | New Only |
Country of Origin | Made in India |
- The cabinet is fabricated of MS duly powder coated (optional SS 304)
- Work table is made of SS 304 which makes it easy to clean, washable & chemical resistive, corrosive free. (optional SS 316)
- Side walls are made out of SS 304 sheet (Optional - thick transparent glass duly framed)
- High efficiency pre filter
- HEPA filter efficiency- 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron
- Manometer gauge to monitor pressure drop in the unit across filter
- Built in U.V. Germicidal Light of 254 nm for disinfection
- Fluorescent light for work space illumination with intensity greater than 1200 Lux
- Velocity 95 fpm ± 10 fpm
- Vertical sliding transparent front door made of glass with UV protective film supported by counter balance weight mechanism (For Vertical LAF)
- Folding acrylic door for Horizontal LAF (Optional)
- Utility gas cock and multi point electric socket
- Noise level less than 60 dB
- Machine qualifies Particle Count Test, Filter Integrity Test, Velocity Test, DOP/POA Test, Light intensity Test and UV Watt Test
- Machine is fitted with lockable castor wheels for ease of movement and fixed with rubber levelling pad.
