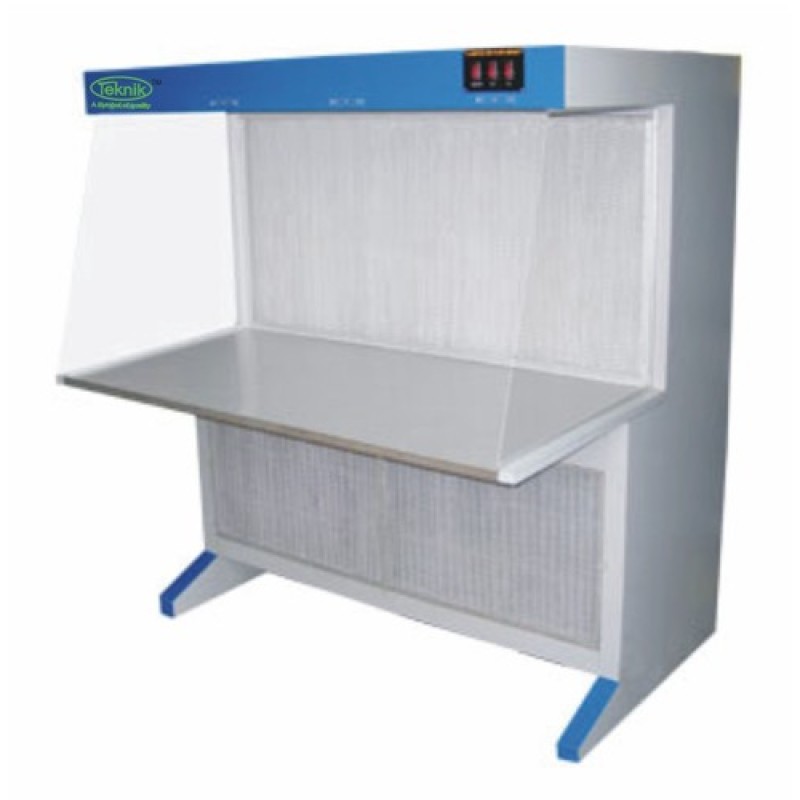

Laminar Air flow
Product Details :
Type | Horizontal |
Material | MS |
Air Flow | Double Filteration |
Surface Finish | Color Coated |
Usage/Application | Laboratory |
Size | 600x600x600 mm |
Laminar Air flow principle involves double filteration of air through coarse pre- filters(upto 5 microns) and hepa filters (down to 0.3 microns) for filteration of biological and particulate contaminants unidirectional air flow is drawn from atmosphere and passed through pre and Hepa filterd on to the work surface. Inner areas are epoxy painted. Table top covered with laminated sheet or SS sheet(optional) side panels are fixed and are made out of transparent acrylic sheet. Front door is also made of acrylic sheet(optional). Superior motor is used for blowers. Unit is supplied with manometer,UV tube, flouroscent lighting tubes etc.
Optional:(Extra Cost)
- Stainless steel table top.
- Folding front door(Acrylic)
- Cock for gas, air
- Chamber Sizes:
- 3x2x2 ft.(900x600x600 mm)
- 4x2x2 ft.(1200x600x600 mm)
- 6x2x2 ft.(1800x600x600 mm)
Additional Information:
- Item Code: 245
