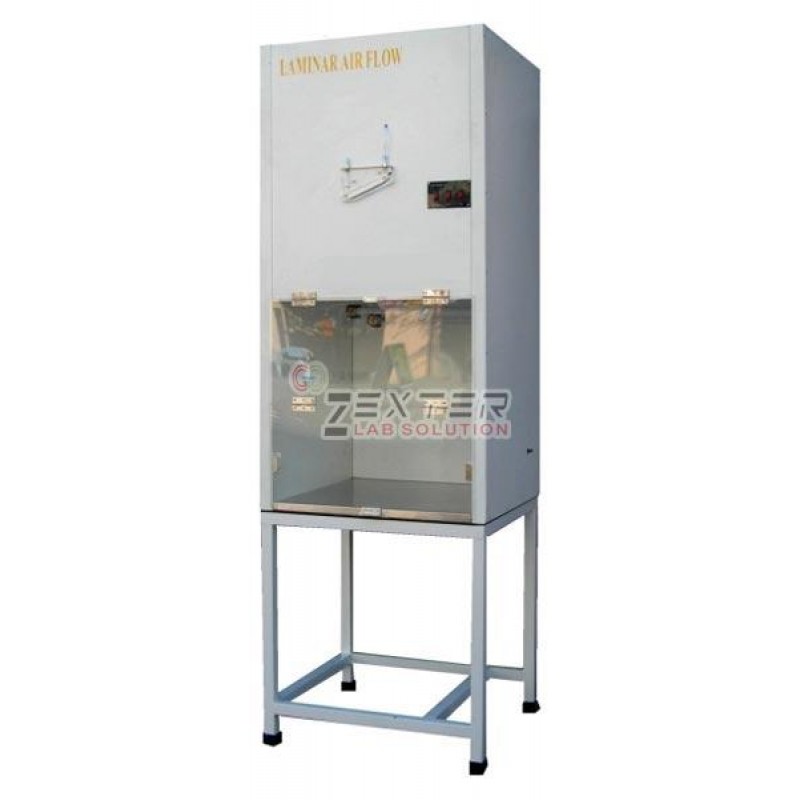

Vertical Laminar Air Flow Bench
Specifications :
Type | Vertical |
Material | Metal, Plastic |
Application | Laboratory Use |
Certification | ISI Certified |
Frequency | 0-50Hz |
Tensile Strength | 10-15Mpa |
Warranty | 1 Year |
Vertical Laminar Air Flow Bench is made with very accurately and precisely by our skilled workers. Vertical Laminar Air Flow Bench is highly durable with low cost maintenance. Vertical Laminar Air Flow Bench is offered at the best market price.
Construction :
- Basic material is Duro board wood/M.S/S.S front back top and exterior surfaces are covered with laminated mica/M.S/S.S.
- All interior surfaces are epoxy painted/M.S/S.S. filter seat is carefully formed, installed and checked for leakage.
- Worktable is made of Mica top and side panels are made of 6 mm thick glass transparent framed in anodized Aluminum angle frame.
- Blowers are fitted with 1/4 H.P. Electric Motor operates with minimum noise and vibration. Suitable to operate on 220 Volts 50 Cy. AC supply. Complete with HEPA Filters, Prefilters, Motor Blower, Manometer, Gas Cock, Transparent Acrylic Sheet Front and Side Doors. However, Clean Air moves in Vertical Motion (Top to down).
Specifications :
Model | Working Area | HEPA Filter Size | No. of Pre Filters | Illumination Florescent Tubes | U.V. Tubes |
LFV-1 | 2'x2'x2' | 2'x2'x 6" | 1 | 1 x 20 W | 1 x 15W |
LFV-2 | 3'x 2'x 2' | 3'x 2'x 6" | 1 | 2 x 20 W | 1 x 30 W |
LFV-3 | 4'x 2'x 2' | 4'x 2'x 6" | 1 | 2 x 40 W | 1 x 30 W |
LFV-4 | 6'x2'x 2' | 6'x2'x 6" | 2 | 2 x 40 W | 1 x 30 W |
