Level Control Trainer (with Ultrasonic Level Transmitter)

Process Control Trainers

SPECIFICATION
Order Code - 52227

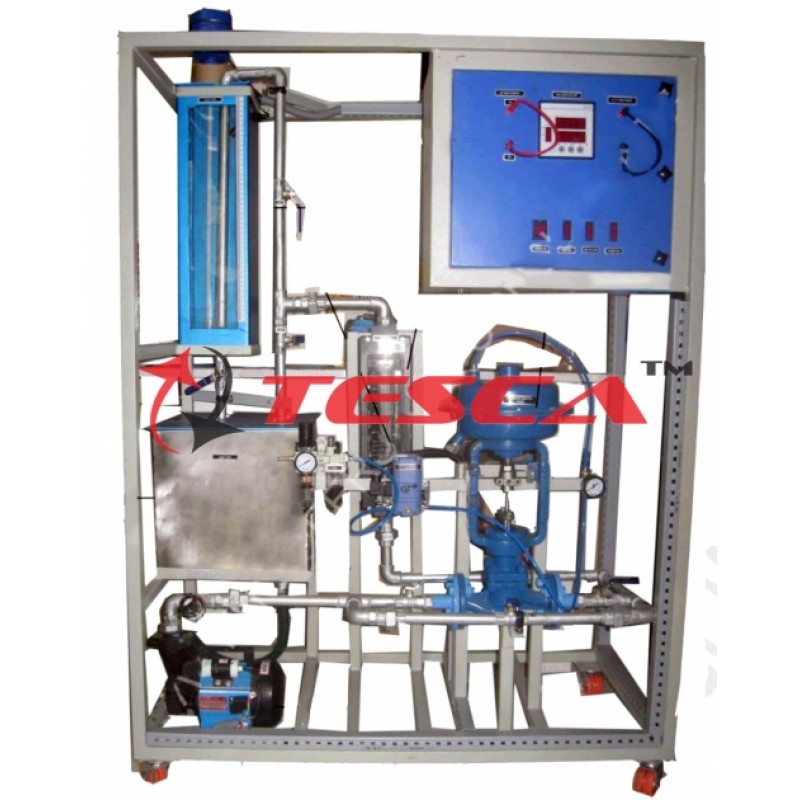

Level Control Trainer (with Ultrasonic Level Transmitter)
The Level Control Trainer is the system, which outlines the basics of Closed Loop Level Control and various aspects related to it.

KEY WORDS:
Open & close loop response.
SCADA Based Level Control
MANUAL/AUTO tuning of controller
Feedback Level control.
ON-OFF & PID control.
P, P I, P I D Controller Action.
USB/RS232/RS485/Ethernet/ Modbus Communication.
Transient Response analysis study
Ability to hook up with DCS (Distributed Control System Trainer)

RANGE OF EXPERIMENTS
Study of single loop Feedback Proportional (P), Integral (I) and Derivative control (D) actions.
Study of operation and calibration of transmitters, I/P converter and Control Valve.
Study of OPEN LOOP/CLOSE LOOP TUNNING & AUTO TUNNING of controller.
Study of STEP response & Transient response of controller ( process curve).
Study of tuning and operation of PID controller.
Study of SCADA Application Software/ Computerized Control of Level Control System.
Study of stability of single loop Level Control System.
Configure microcontroller based controller to give manual output, changing controller modes (Manual/Auto), Checking ON-OFF, Proportional, Integral, Derivative, PI and PID control actions, Change local Set point, configure and run a set point ramp, configure measured values to either percentage or Engineering units.
Study of Communication Protocols and interfacing of System with DCS / SCADA etc.
Study of SCADA Application Software/ Computerized Control of Level Control System.

FEATURES
Illustrates the concept of feedback Level control loop.
User Friendly, Self Explanatory Systems.
System Frame with Caster Wheel Arr
Inbuilt Safety Measures to avoid improper usage.
M.S. powder coated cubical plant with standard Instrument Mountings.
Computer Interface (Optional), SCADA Application software connectivity for analysis of Level Control System Trainer.
Training Manual & Mimic Charts for Operation Ease.
Leak proof Safety Measures, sturdy piping.
