MARSHAL STABILITY TEST APPARATUS
Product Details:
Capacity: 5000 kgf
Motorized
ASTM: D 1559- T –62.
With proving ring Cap 30KN and dial gauge 0.01 x 25mm
Generally the test is applicable to hot mix designs using bitumen and aggregates up to a maximum size of 25mm. In this method, the resistance to plastic deformation of cylindrical specimen of bituminous mixture is measured when the same is loaded at periphery at 5 cm per min. This test procedure is used in designing and evaluating bituminous paving mixes. The test procedure is extensively used in routine test programmers for paving jobs. There are two major features of the Marshall method of designing mixes namely, a) density – voids analysis b) Stability – flow tests.
The marshal stability of mix is defined as a maximum load carried by a compacted specimen at a standard test temperature of 60ºC. The flow value is deformation the marshal test specimen under goes during the loading up to the maximum load, 0.25 mm units. In this test and attempt is made to determine optimum binder content for the type of aggregate mix and traffic intensity.

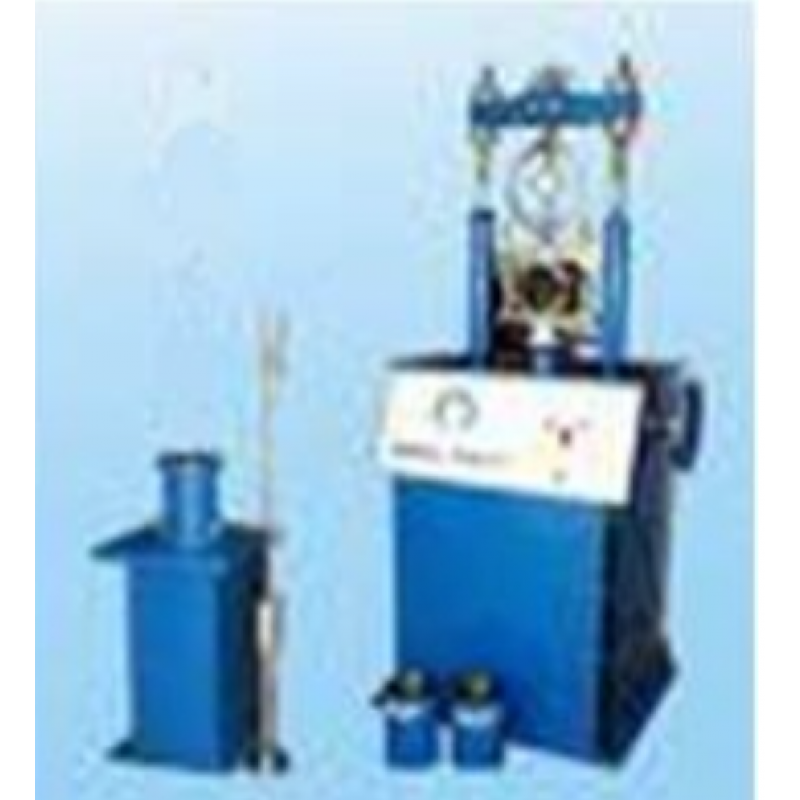

The apparatus consists of: 1) A loading unit motorized, capacity 5000kgf with two telescopic pillars and an adjustable cross head. Limit switches are fitted inside to control upward or downward movement of the pillars. On-off reversing switch and indicator lamps are on the front side while a hand wheel to manually move the pillars is on the right. The load frame has fixed speed of 5.80cm per minute. Operated on 230 Volts A.C
