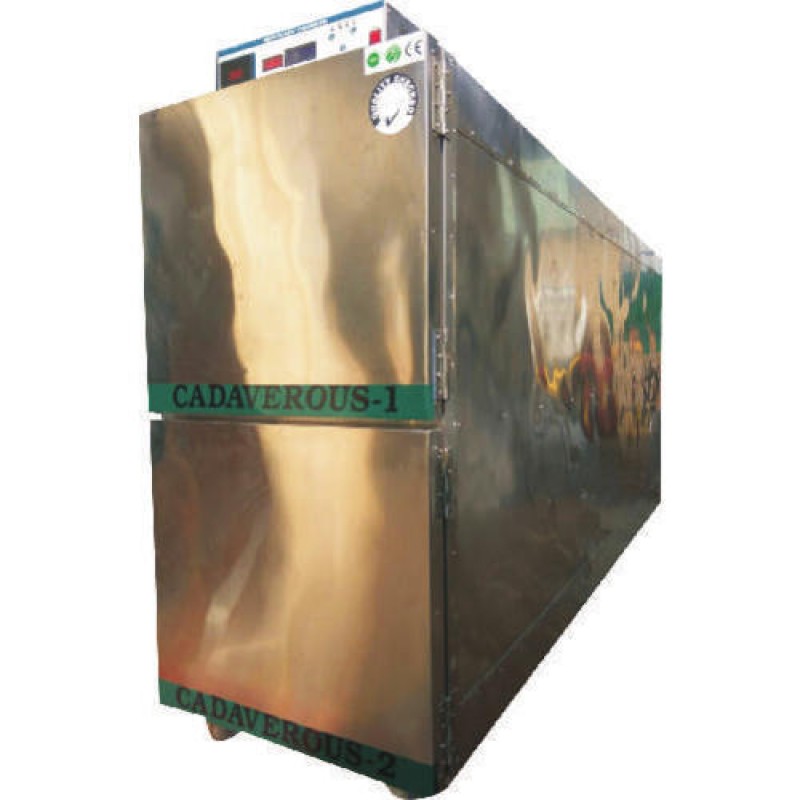

MOURTUARY REFRIGERATOR
Product Details:
* Hi-Low temperature deviation alarm.
* Sensor Failure Indication protection.
* Start-up delay protection for compressor.
Digital Model
* Hi-performance hermetically sealed compressor .
* CFC-free ECO-FRIENDLY refrigerants.
* High density HCFC free polyurethane insulation foam.
* Uniformly spread evaporator imparts faster freezing and better performance on conformity of temperature.
APPLICATIONS
*Cooling coils for mortuary freezer are placed between foamed-in-place PUF insulation and brazed to Stainless Steel chamber eliminating any chances of FROST FORMATION and choking of evaporator.
*Finned tube evaporator with forced air convention for mortuary refrigerator.
CONSTRUCTION
*Outer body of Stainless Steel. Inner Chamber of Stainless Steel. High density machine filled HCFC free polyurethane insulation foam (PUF). Specially designed latch eliminates cooling loss. Side by side chambers for bigger capacities.

Model (Mortuary Chamber)	APS-MC-2	APS-MC-3	APS-MC-4	APS-MC-6	APS-MC-12
Capacity	2 Body	3 Body	4 Body	6 Body	12 Body
Temperature	2oC to 6oC
Controller	Microprocessor / Micro-controller based temperature controller
Temperature Display	Digital LED with SV and PV
MOC Outer	GI Powder Coated/Stainless steel Optional
MOC Inner	Stainless steel
Door	Standard hinged door with double gasket seal between the doors.
Insulation	High grade PUF INSULATED between outer and inner chamber for minimal thermal losses
Body Trays	Telescopic/Pull out trays made up of SS sheet
Interior Lighting	Interior fluorescent lighting
Castors	Castors for minimal effort mobility
Refrigeration system	Superior and heavy duty air cooled refrigeration system.
Compressor	CFC FREE ECO FRIENDLY
Condenser	Highly efficient condenser with automatic condensate evaporating system.
Evaporator	Internal evaporator system Forced draught
Refrigerant	Non-CFC/HCFC environmental friendly based on compressor capacity
Air Circulation	Forced air circulation to maintain chamber uniformity
Door Lock	Provided for safety and security of specimen.
Power Supply	220 / 230 Volts, Single Phase Supply
