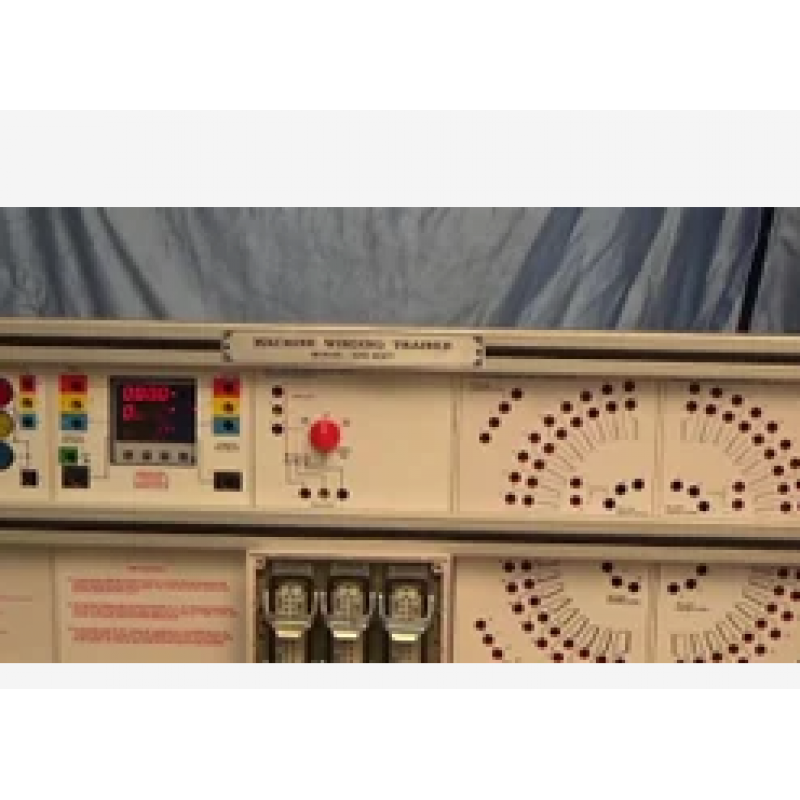

Machine Winding Trainer
Product Details:
• Light Weight, Yet Sturdy Tabletop, Aluminum Profile (45x45) Modular Flat Demo Panel Setup With 24 Pin X 3 Nos. Heavy Duty (hd) Connector Cable Set To Extend Machine Winding On To The Flat Demo Panel Setup From Chassis Mounted Squirrel Cage Motor.
• Facilitates To Construct & Operate Motor As 3 Phase 2, 4, 6, 8 And 12 Pole And 2, 4 And 6 Pole 1 Phase Motor, Separate Capacitors Provided For Aux Phase.
• Facilitates Easy And Safe Wiring By Students Due To Use Of 4mm Sturdy Shrouded Banana Patch Cords And Shrouded Socket Arrangements For High Voltage Circuits.
• Each Panel Has Abs Molded Plastic Sturdy Enclosure, And Colorful Screwless Overlays Showing Circuits Diagrams & Its Connection Tag Numbers For Easy Understanding And Connection
• Set Of Instructor Guide & Student Workbook.
