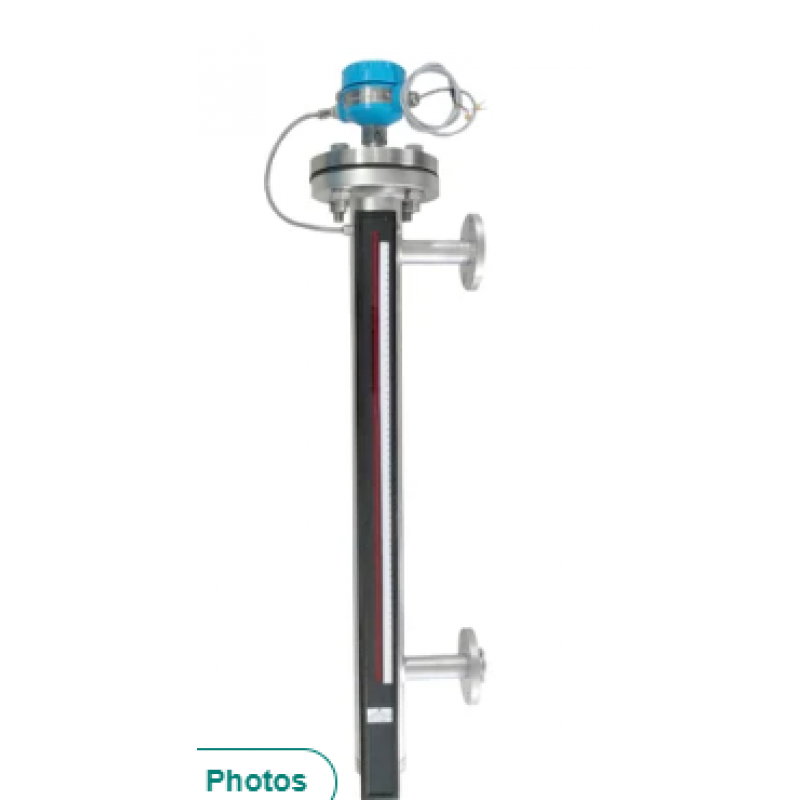

Magnetic Liquid Level Gauge
Product Details:

Material	SS316
Model	ELMLG-100
Brand	ELECTRONET
Power Supply	24 V DC
Probe MOC	SS316
Process connection	Half inch NPT (F) / Flange
Output	4 to 20 mA / 1 to 5 V

Electronet series Magnetic Liquid Level Gauge ELMLG-100 is an instrument for indicating the fluid level.
It has a magnetic float inside of the non-magnetic chamber and an indicator outside of it. The indicator indicates the fluid level by means of the magnetic force of the magnet installed inside of the float.
The indicator is completely separated from the chamber. The level of liquid and gaseous phases can be distinguished clearly by the Bi-color. Magnetic level indicators are low-maintenance alternatives to sight glasses and other level indicators. They provide non-invasive level indication while reducing leak points and fugitive emissions.
