COIL SPRING

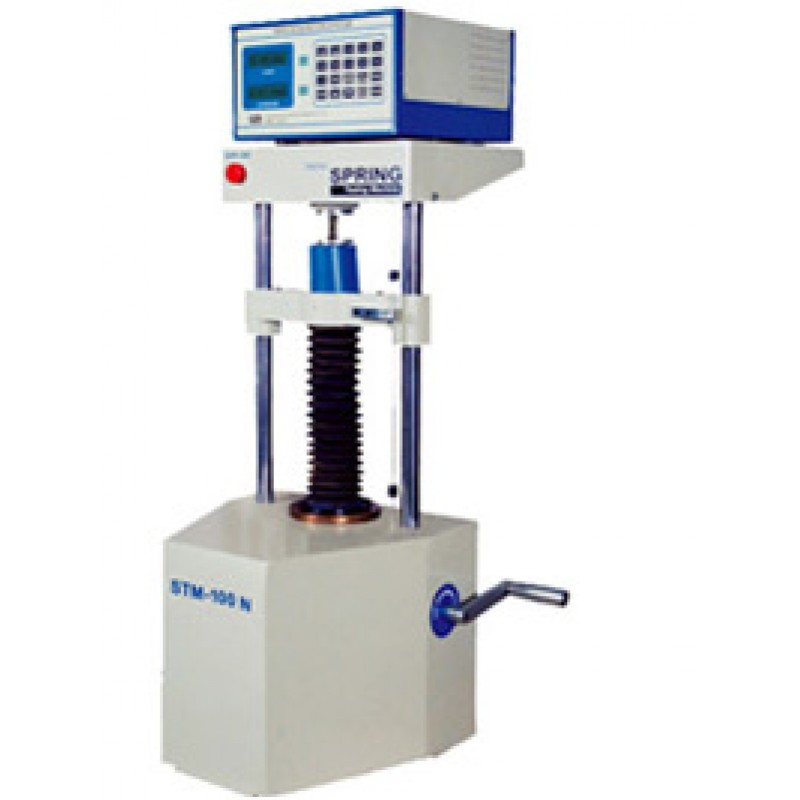

Digital, Hand Operated, Coil Spring Testing Machines ( Model : STM )
- The machine is table mounted, digital & hand operated.
- Load measurement by load cell & displacement by rotary encoder. LCD display on DAS panel for Load & Displacement.
- Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at extra cost. Standard displacement resolution is 0.01 mm.
- Vertical day light is 300 mm.
- Tension Shackles & Compression plates are provided for Tension & Compression springs.
- It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
- Various Models - Maximum Capacity from 100 N to 2000 N.
- Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
Technical Specifications - Coil Spring (Hand Operated) Machines
| 1 | Operation | Hand operated - Manually |
| 2 | Capacities | 50N, 500N, 1000N, 2000N Maximum |
| 3 | Load Measurement | By Load Cell |
| 4 | Displacement | By Rotary Encoder |
| 5 | Resolution | 10000 Counts for Maximum Load 0.2 N - For 2000 N Load Cell |
| 6 | Display For Load & Displacement | LCD Display |
| 7 | Resolution of Displacement | 0.01 mm |
| 8 | Vertical day light | 300 mm |
| 9 | Load Accuracy | ±1% From 4% to 100% Load Cell Capacity |
| 10 | Tension Shackles Provided | For Tension Springs |
| 11 | Compression Plate Provided | For compression Springs |
| 12 | Overall Dimensions (L x W x H) | 500 x 400 x 1100 mm Approx |
Coil Spring Testing Machine
- Views: 189
-
Krutam Technosolutions - Vendor Type: Manufacturer, Supplier
- Product Code: STM
- Availability: In Stock
- ₹0
