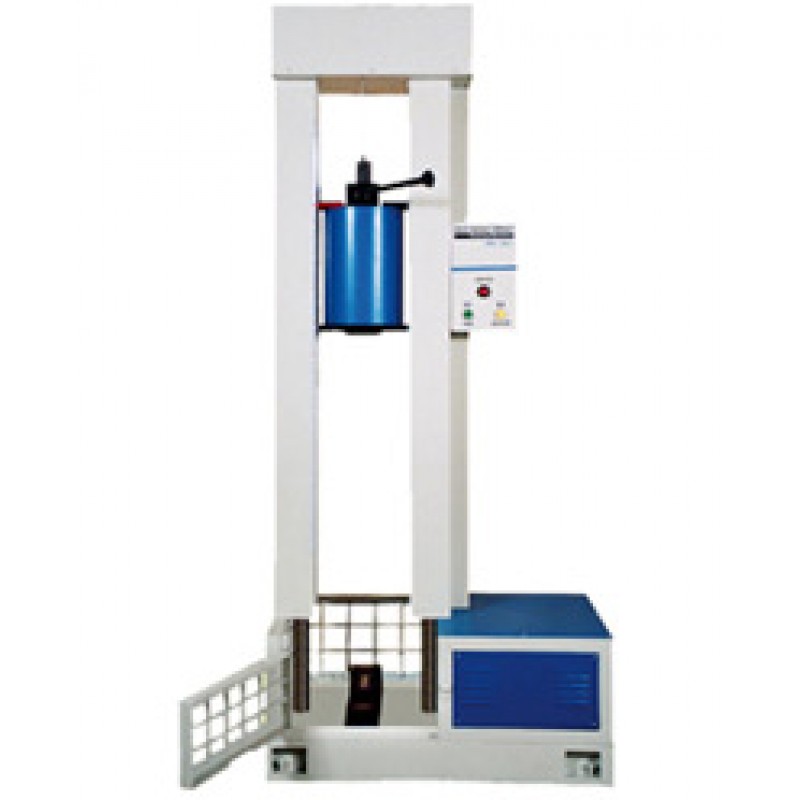

Drop Weight Impact Testing Machines ( FDW-1650 J )
- To conduct fracture toughness test as per ASTM-E-208.
- Energies are - 350, 400, 450, 550, 800, 1100, 1350, 1650 J.
- Drop weight is 136 kg & height of fall is 1237mm (max.) adjustable to get the desired energies. Striker tip radius is 25.4mm & hardness is 50HRC (min.)
- Striker lifting arrangement is motorized driven by electrical motor & speed of lifting is 1.2 mtr/min.(appx.).
Technical Specifications - For Drop Weight Impact Testing Machine (Model : FDW - 1650 J)
| Energy | 350, 400, 450, 550, 800, 1100, 1350, 1650 J |
| Drop Weight | 136 kg |
| Height of fall | 1237 mm (max) adjustable to get the desired energies |
| Striking tip | Radius 25.4 mm, Hardness 50 HRC (Min) |
| Striker lifting arrangement | Motorized driven by electrical motor |
| Speed of lifting | 1.2 Mtr / Min (approx) |
| Anvil | As per Fig. 4 of ASTM - E - 208 |
| Power supply | 415 V, 50 Hz A/c |
| Motor | 0.25 HP, 3 Phase, 415 V, 50 Hz, A.C. |
| The striking tub shall strike within ± 2.5 mm of line of compression side of specimen (Clause No. 9.2.2 of ASTM) | |
