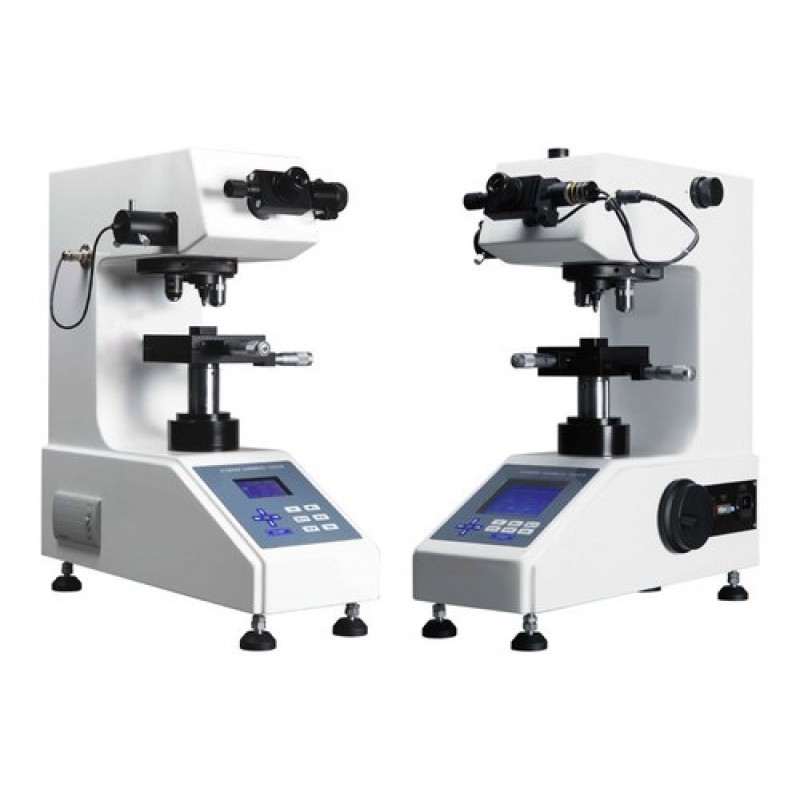

Auto Torret Micro Vickers Hardness Tester
Product Details :
Display Type | Digital |
Brand | Metlab |
Testing Range | 1 HV-4000 HV |
Dimension | 405 x 290 x 480 mm |
Voltage | 110 V / 220 V + 5% |
Frequency | 60/50 Hz |
Weight | 45 Kg |
Holding Time | 1-99 Seconds |
Specimen Allows Height | 85 mm |
Indenter Center to Wall Distance | 110 mm |
Special designed for improving the working efficiency of our customers as its automatically design. After adjusting the focal length, the objective lens and indenter can be switched automatically. And the testing force can load, dwell and unload automatically. Then the objective lens will automatically return to the initial focus state, and the length of indentation can be measured directly.
Application:
- Testing the hardness of metallographic structure, from the most soft material to the most hard material.
- Carburizing, nitriding, hardened layer, surface coating, steel, nonferrous metals.
Specifications:
Test force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
Rulers | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2 |
Minimum measurement unit | 0.25μm |
Measuring the hardness range | 1HV-4000HV |
Hardness value read | Digital LCD |
Total magnification | 100X (observed), 400X (measurement) |
Loading mode | Fully automatic (loading, dwell, unloading) |
Holding Time | 1-99 seconds |
The objective lens and the press head switch | Auto TurretObjective Lenses-Indentor-Objective Lenses switching Automatically) |
Specimen allows a maximum height | 85mm |
Indenter center to wall distance | 110mm |
Instrument Size | 405 × 290 × 480mm (L × W × H) |
Instrument Weight | 45kg |
Light source | LED cold light source (continuous 24-hour use life of up to 100,000 hours) |
Power supply | 110V/220V + 5%, 50/60 Hz |
XY table | Dimensions: 100 × 100 mm, the largest mobile: 25 × 25mm Minimum reading: 0.01mm |
Data Output | Built-in printer (hardness values, maximum and minimum test time, the number of tests, the average) |
Implementation of standards | GB/T4340.2 national standards, JJG151 VRof |
Standard fittings, accessories | 10X eyepiece micrometer a Vickers indenter a 10X and 40X objective lens of each one, and two standard hardness block, XY table, flat fixture, sheet fixtures, small parts jig a leveling screw four a bubble level, the power cord is a dust cover a manual, hardness conversion tables, certificate, warranty card, accessory case a |
Optional | Image analysis software, metallurgical equipment, Knoop indenter Knoop hardness block, 15X eyepiece micrometer, 2.5X objective lens, 20X objective lens, 60X objective lens |
