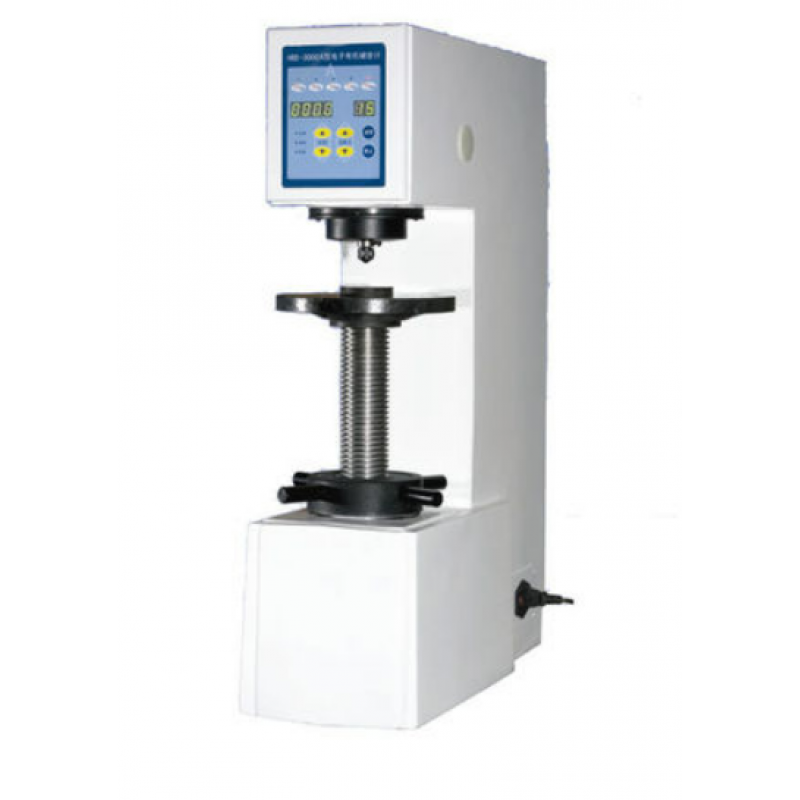

Brinell Hardness Tester

With the aid of our expert team having technically strong background, we are able to render a comprehensive range of Brinell Hardness Tester. The offered products are precisely designed and developed by our team of experts in a highly sophisticated premise.



Model: SE-AKB-3000



Specification:



• Loads (kgf): 500 to 3000 in steps of 250

• Initial load (kgf): 250

• Max. test height x throat (mm): 380 x 200

• Max. Depth of elevating screw below base (mm) approx: 180

• Machine height (mm) approx: 1150

• Size of base (mm) approx: 400 x 740

• Net weight (kg) approx: 325

• Drive Motor (hp): 0.5

• Mains supply: 3 phase, 415V, 50Hz, A.C

• Indentation Measurement: by separate microscope
