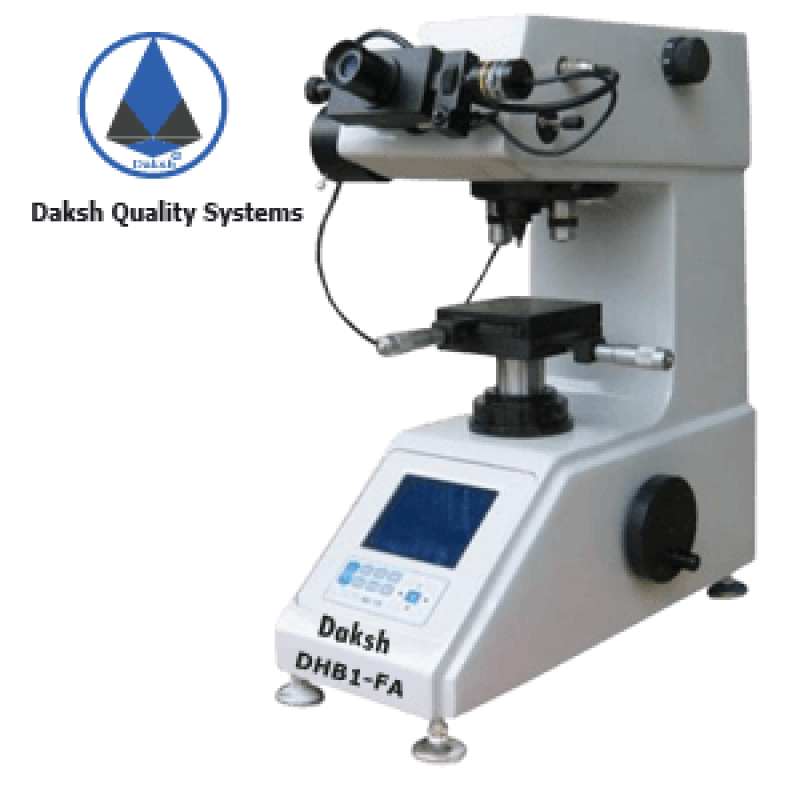

MODEL DHB1-FA DIGITAL DISPLAY MICROHARDNESS TESTER

Product De

Features

• Automatic turret shifting between penetrator and object lens.
• High resolution and high brightness LCD display
• Inside light source color can be changed as per customer's demands
• Built-in printer
• High resolution and high brightness 8 inch LCD touch Screen
• RS232 interface

Specifications:

• Measuring range: 5-3000HV
• Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf)
• Magnifications of the measuring system: 400X, 100X
• Magnifications of the measuring system: 100X, 400X
• Min. measuring unit: 0.025 μm
• Max. height of test piece: 75mm
• Depth of throat: 110mm
• Power supply: 220V/110V AC, 50Hz
• Dimensions: 470 x 320 x 500mm
• Weight: approx. 50kg

Main accessories

• Coordinate anvil: 1 pc.
• Thin shaft anvil: 1 pc.
• Thin plate anvil: 1 pc.
• Flat nose pliers: 1 pc.
• Large V-notch anvil: 1 pc
• Diamond pyramid penetrator: 1 pc. Micro-Vickers standardized block: 2 pcs.
