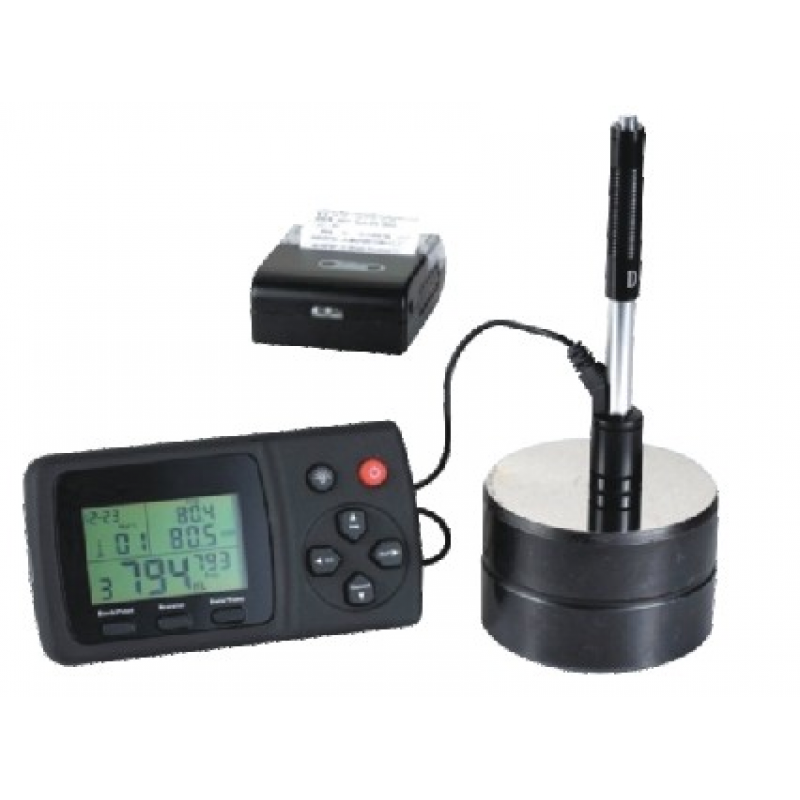

Digital Portable Hardness Tester
Product Details :
Named as a reputed firm; we are involved in manufacturing, supplying and exporting Digital Portable Hardness Tester. Widely used to test hardness of metal and non metal objects, these machines are used in research institutes, laboratories and mechanical industry. The LCD display screen is provided with backlight that enables operator to read results even in case of dim light. To meet the specific requirements of clients, Digital Portable Hardness Tester is offered in varied models.
Features:
- Simple operations
- Fast measurements
- Clear display
- Accurate results
Specifications:
- HL display range
- 0-999HLD
- Accurac
- ±6 HL (at 500 HLD)
- LCD
- Large LCD with bakclight
- Scales
- HL, HV, HB, HRB, HSD, MPa
- Resolution
- 1 HL; 1 HV: 1HB; 0.1HRB; 1 HSD; IMPa
- Measuring direciton
- 360
- Power
- Dry cell (3 x 1.5 V AAA)
- Operating temperature
- 0° to +50° C (32° to 122° F)
- Humidity
- 90% max.
- Dimensions
- 150mm X 80mm x 24mm
- Weight
- Approx.200g
- IMPACT UNITD
- Impact energy
- 11 N.mm
- Mass of the impat body
- 5.5g
- Test tip diameter
- 3mm
- Test tip material
- Tungsten carbide
- Test tip hardness
- >1600HV
- Impact length
- 147mm
- Impact max.diameter
- 20mm
- Impact weight
- 75g
