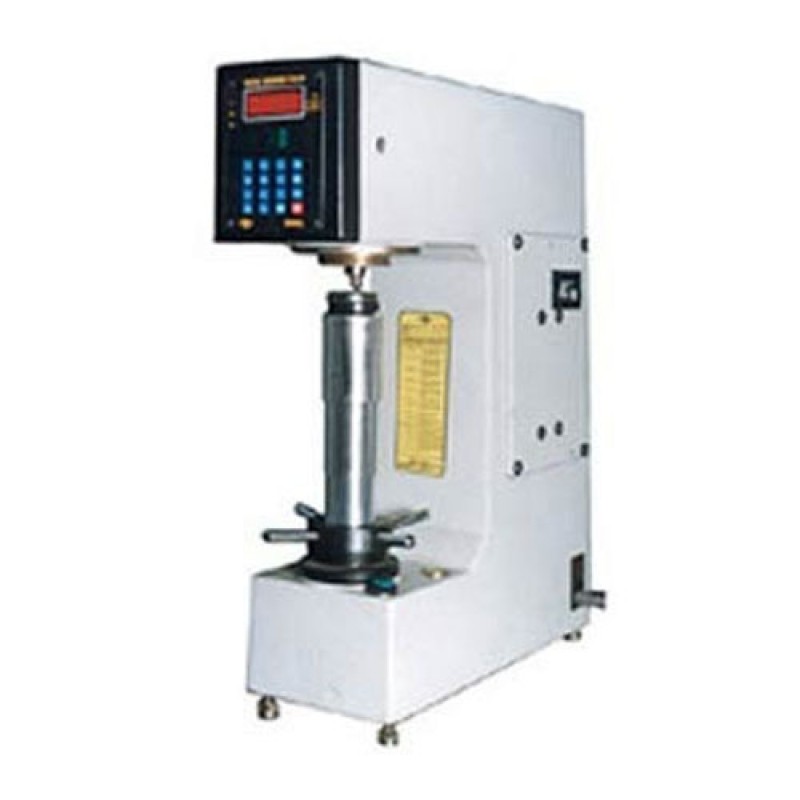

Digital Rockwell Cum Brinell Hardness Tester
Product Details :
Brand | Fine Testing |
Depth Of Throat | 155 |
Load Range | 250kgf |
Maximum Load | 250kgf |
Features:
- 21x8 Lines LCD Graphics Display with Backlit
- Minor Load is graphically displayed on LCD screen
- Keyboard data entry for Serial No., Batch No., No. of readings for Average, Cylindrical Correction, Date and Time
- Dual Time setting for Major Load 1 to 99 Sec.
- Battery Backup Real Time Clock for Test results time stamp
- Results are displayed in BIG Font size
- For average option, up to 9 previous results are displayed on
Specifications:
Model | TRSN-D | TRSNB-D | TRSNB-250-D | TRSNT-D |
Test Loads (Kgf) | 60,100,150 | 60,100,150 | 60,100,150 (Rockwell) 187.5, 250 (Brinell) | 60, 100, 150, (Rockwell) |
Initial Loads (Kgf) | 10 | 10 | 10 | 10(Rockwell) and 3 (Rockwell Superficial) |
Max. Test Height (mm) | 300 | 300 | 300 | 300 |
Depth of Throat (mm) | 155 | 155 | 155 | 155 |
Size of Base (mm) Approx) | 655 X 250 | 645 X 260 | 655 X 250 | 655 X 250 |
Machine Height (mm) | 745 | 745 | 745 | 745 |
Nett Weight (Approx. ) Kg. | 110 | 110 | 110 | 150 |
Supply Voltage | 230 V, 50 Hz. Single Phase AC |
