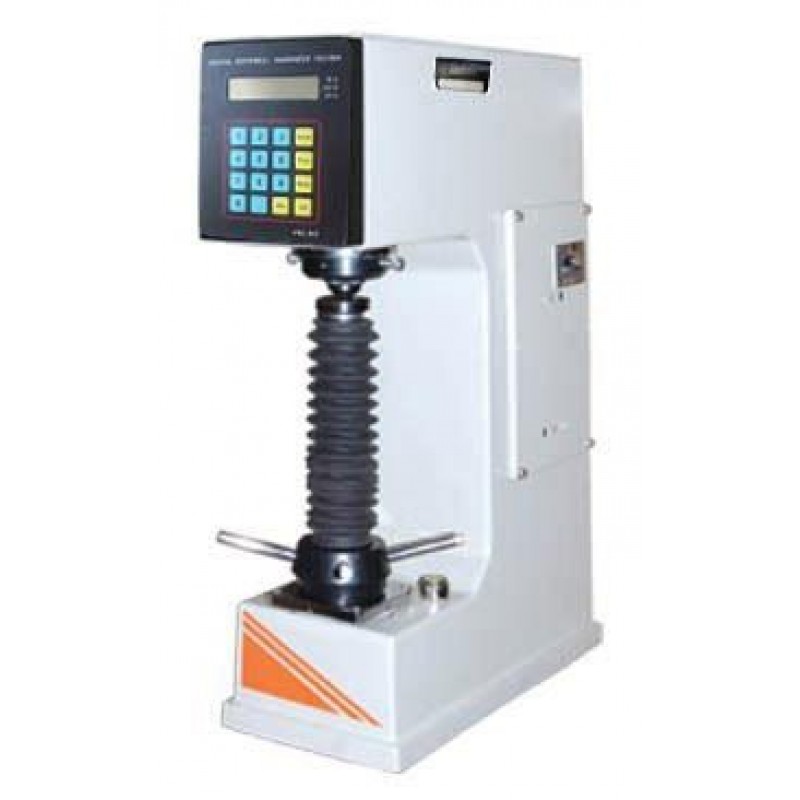

Digital Rockwell Cum Superficial Hardness Tester
Product Details :
Specifications:
Automation Grade | Semi-automatic |
Display Type | Digital |
Hardness Scale | HRA, HRB, HRC |
Model Number | TRSNT-D |
Power (Volt) | 220 |
Steel Ball Indenter (Millimeter) | 1/16, |
Testing Table Size (Millimeter) | 50 |
Operating Temp (Degree Fah.) | 10-35 |
Brand | Fine Testing |
Preliminary Test Force | 15 |
Total Test Force | 150 |
Weight | 110 |
Portable | Non Portable |
Condition | New |
We are offering Digital Superficial Hardness Tester.
Specifications :
Model | TRSN-D | TRSNB-D | TRSNB-250-D | TRSNT-D |
Test Loads (Kgf) | 60,100,150 | 60,100,150 | 60,100,150 (Rockwell) 187.5, 250 (Brinell) | 60, 100, 150, (Rockwell) |
Initial Loads (Kgf) | 10 | 10 | 10 | 10(Rockwell) and 3 (Rockwell Superficial) |
Max. Test Height (mm) | 350 | 350 | 350 | 350 |
Depth of Throat (mm) | 155 | 155 | 155 | 155 |
Size of Base (mm) Approx.) | 645 X 260 | 645 X 260 | 645 X 260 | 645 X 260 |
Machine Height (mm) | 745 | 745 | 745 | 745 |
Nett Weight (Approx. ) Kg. | 110 | 110 | 110 | 110 |
Supply Voltage | 240 V, 50 Hz. Single Phase AC | |||
Digital Rockwell Cum Superficial Hardness Tester
- Views: 194
-
Fine Testing Instrument (India) - Product Code: TRSNT-D
- Availability: In Stock
- ₹0
Seller information
Fine Testing Instrument (India)
- Fine Testing Instrument (India)
- https://www.indiamart.com/finemachine/testing-machines.html
- Kolkata, India
- Business Type :Manufacturer, Supplier
