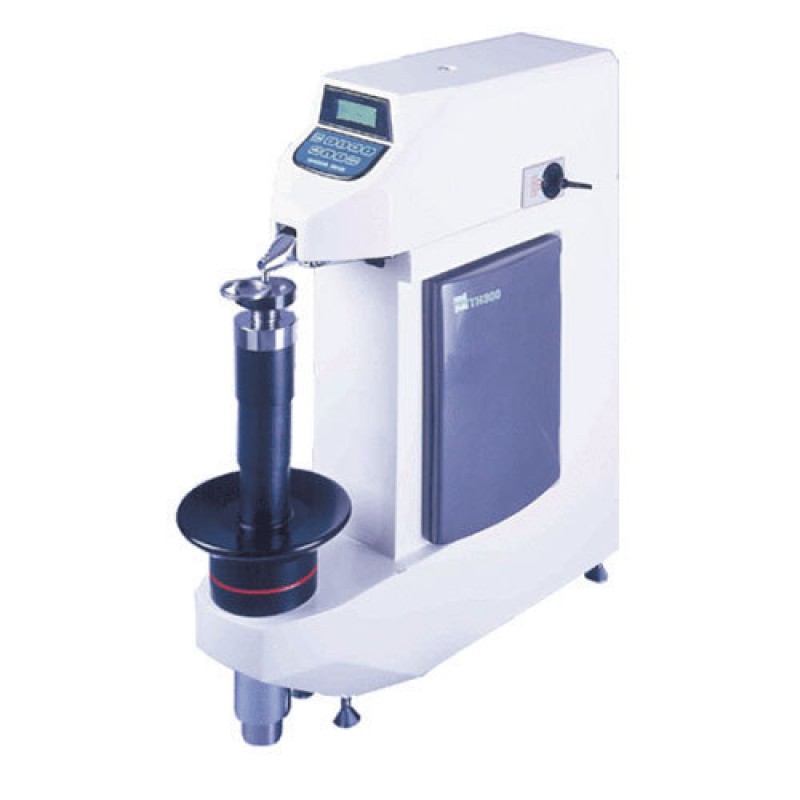

Digital Rockwell Hardness Tester
Product Details :
Display | Matrix Backlight LCD |
Operation | Menu Selectable, Membrane Keypad |
Total Load | 588.4N/60kgf, 980.7N/100kgf, 1471N/150kgf |
Digital Rockwell Hardness TesterFeatures:
- Horizontal protrudent nose design, testing on surfaces difficult to reach
- Testing internal surface of ring parts whose diameter is not less than 23mm(0.900)
- Testing external surface of round bars whose diameter is not less than 3mm (0.120)
- Automatic test process
- High definition backlight LCD
- Simple and easy selectable operation menu
- RS-232/USB data output
- TH300: Rockwell hardness tester
- TH301: Rockwell hardness tester with auto-switch of test force.
- TH310: Rockwell superficial hardness tester.
- TH320: Rockwell & Rockwell superficial hardness tester
Technical Specification:
Model | TH300 | TH301 | TH310 | TH320 |
Hardness scales | Rockwell A, B, C,D,E,F, | Rockwell A, B , C, D,E, F, G, H,K, L, M, P, R, S, V | Rockwell superficial | Rockwell A,B,C,D,E,F,G,H,K,L,M,P,R,S,V |
Resolution | 0.1Rockwell unit | |||
Pre-load | 98.07N/10kgf | 29.42N/3kgf | 98.07N/10kgf, 29.42N/3kgf | |
Language | English, French, Germany | English | ||
Test process | Automatic | |||
Load duration | 2-50 seconds, can be set, | 2-50 seconds, Can be set, | 2-50 seconds, Can be set, dynamic displayed and stored | 2-50 seconds, Can be set, dynamic displayed and stored |
Data output | RS232 | RS232, USB | RS232 | RS232 |
