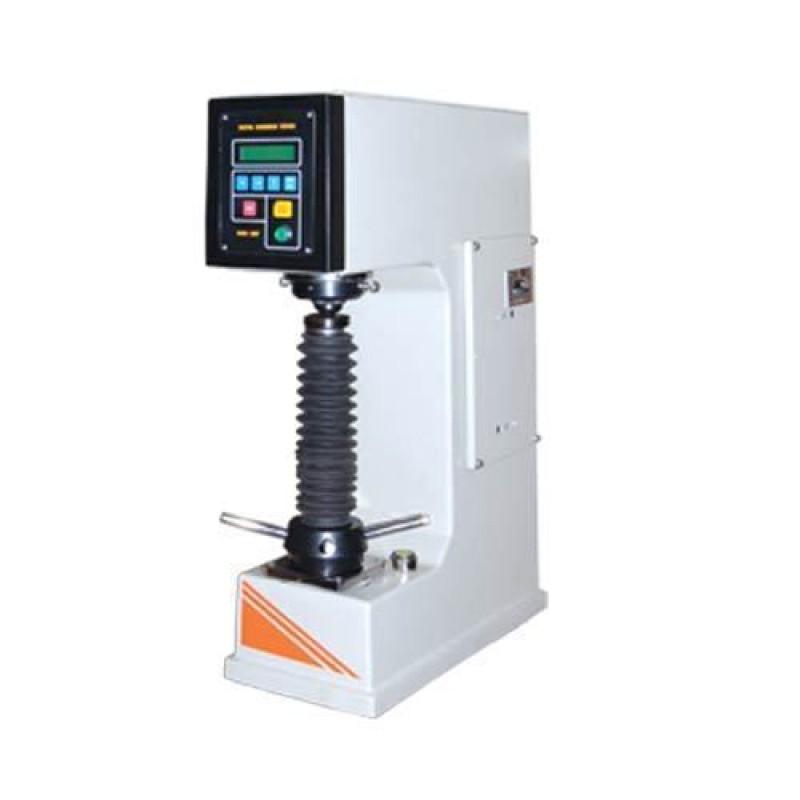

Digital Rockwell Hardness Tester
Product Details :
Automation Grade | Semi-automatic |
Warranty | 1 Year |
Hardness Scale | HRA, HRB, HRC |
Model Number | TRSN-D |
Brand | Fine Testing |
Depth Of Throat | 155 |
Load Range | 150 |
Portable | Non Portable |
Condition | New |
Salient Features:
- 21x8 Lines LCD Graphics Display with Backlit
- Minor Load is graphically displayed on LCD screen
- Keyboard data entry for Serial No., Batch No., No. of readings for Average, Cylindrical Correction, Date and Time
- Dual Time setting for Major Load 1 to 99 Sec.
- Battery Backup Real Time Clock for Test results time stamp
- Results are displayed in BIG Font size
- For average option, up to 9 previous results are displayed on Screen,
- Average and standard deviation values are displayed after completion of test.
- 500 Results are stored in the system with automatic data save option
- User can enable auto save result storage in system or disable it.
- Batch wise reports and statically reports are displayed on Screen and printed on printer
- At a time user can see 7 readings on LCD display and he can scroll results with UP/DOWN keys
- Automatic Weight Selection Detection (Optional)
- User can select appropriate scale according to weight selected
- Motorized Automatic Loading or Manual Loading is selectable
- Rockwell, Rockwell superficial and Rockwell cum Brinell hardness testers.
- Motorized Automatic Loading or Manual Loading is selectable
- Rockwell, Rockwell superficial and Rockwell cum Brinell hardness testers.
- Conversion of results from Rockwell to Brinell (HB), Vickers (HV), Koop (HK), Tensile Strength (KSI), Microficial (WMN)
- Serial Port for Dot Matrix Printer or Thermal Printer interface or computer interface.
- Print result consists of Batch No, Serial No. Date Time, Hardness Value and Hardness Scale
- RS232C Port can be programmable, Baud rate can be selected as per customers need.
- These models strictly confirms to IS 1586-2000, BSEN-ISO-6508-2, ASTM-E-18 for Rockwell Test and IS2281-1983, BS240,ASTM-E- 10 for Brinell test and IS 1586-2000,ASTM-E-18 for Rockwell Superficial Test.
- Digital Measuring and control technology comes as standard with the hardness testing machines that enables test sequence Parameters to be reported with a high level of precision
Technical Specifications:
Model | TRSN-D |
Test Loads (Kgf) | 60,100,150 |
Initial Loads (Kgf) | 10 |
Max. Test Height (mm) | 300 |
Depth of Throat (mm) | 155 |
Size of Base (mm) Approx.) | 645 X 260 |
Machine Height (mm) | 745 |
Nett Weight (Approx. ) Kg. | 110 |
Supply Voltage | 230 V, 50 Hz. Single Phase AC |
