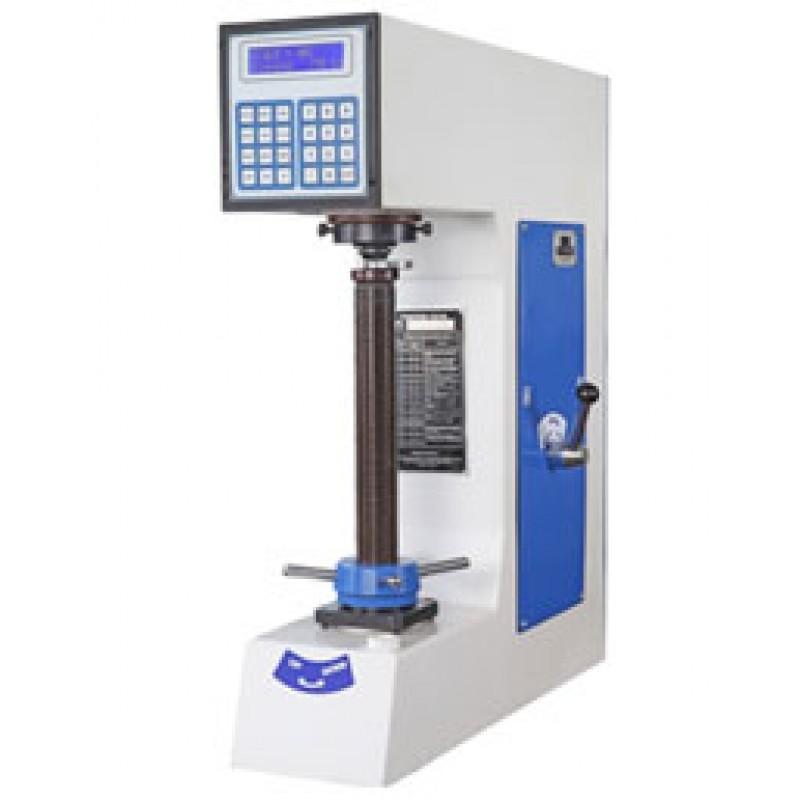

Digital Rockwell Hardness Testing Machines ( Model : TRS-DM, TSM-DM, TRB-DM, TRB-250-DM, TRS-DM-P )
- This machine is designed for measuring hardness of metals & alloys of all kinds, hard or soft, whether round, flat or irregular in shapes.
- Semi-automatic, motorized, digital, microprocessor based panel. We can get hardness in digital version.
- Centronics parallel port for connecting dot matrix printer.
- Three modes of operation viz. Motorized automatic mode, Motorized mode & Manual mode.
- Automatic weight selection by thumb wheel.
- Test height x Throat is - 295 x 148 mm.
- Machines strictly conforms to IS:1586 / 2281, BS: 240, ASTM-E-10
Technical Specifications Of Digital Rockwell Hardness Testers :
| MODEL | TRS-DM | TRB-DM | TRB-250-DM | TSM-DM |
| Test Loads (kgf) | 60, 100, 150 (Rockwell) | 60, 100, 150 (Rockwell) & 187.5 (Brinell) | 60, 100, 150 (Rockwell) & 187.5, 250 (Brinell) | 60, 100, 150 (Rockwell) & 15, 30, 45 (Rockwell Superficial) |
| Initial Loads (kgf) | 10 | 10 | 10 | 10 (Rockwell) & 3 (Rockwell Superficial) |
| Max. Test Height (mm) | 295 | 295 | 295 | 295 |
| Depth of Throat (mm) | 148 | 148 | 148 | 148 |
| Max. depth of elevating screw below base (mm) | 290 | 290 | 290 | 290 |
| Overall Dimensions (L X W X H) (mm) (Approx.) | 580 x 270 x 915 | 580 x 270 x 915 | 580 x 270 x 915 | 580 x 270 x 915 |
| Net. Wt. Approx. (kg) | 110 | 110 | 160 | 160 |
| Scales Displayed | Rockwell A, B, C, D, E, F, G, H, K, M, P, R, S, V, L in Nos. 1 to 15 resp. | Rockwell A, B, C, D, E, F, G, H, K, M, P, R, S, L, V, 15N, 30N, 45N, 15T, 30T, 45T in Nos. 1 to 21 resp. | ||
| Least Count | 0.1 | 0.1 | 0.1 | 0.1 For Rockwell & 0.2 For Rockwell Superficial |
| Minor Load Setting | By Bar Graph Indicator (Manual Setting) | |||
| Load Control | Automatic (Loading, Dwell, Unloading for major load) | |||
| Dwell Time | 1 to 99 seconds selectable | |||
| Printer Interface | Centronics Parallel Port to connect Dot Matrix Printer | |||
| Power Supply | 220 V, Single Phase, 50 Hz, AC, (3 Wire System) | |||
Standard Accessories :
| Rockwell Diamond Indenter | 1 No. | 1 No. | 1 No. | 1 No. |
| Superficial Diamond Indenter | -- | -- | -- | 1 No. |
| Testing Table f 50 mm | 1 No. | 1 No. | 1 No. | 1 No. |
| Testing Table f40 mm with ‘V’ Groove for round Jobs f6 to 45 mm | 1 No. | 1 No. | 1 No. | 1 No. |
| Steel Ball Indenter f1/16 ” | 1 No. | 1 No. | 1 No. | 1 No. |
| Steel Ball Indenter f2.5 mm | -- | 1 No. | 1 No. | -- |
| Steel Ball Indenter f5 mm | -- | 1 No. | 1 No. | -- |
| Test Block HRC | 1 No. | 1 No. | 1 No. | 1 No. |
| Test Block HRB | 1 No. | 1 No. | 1 No. | 1 No. |
| Test Block HB 2.5mm/187.5 kgf | -- | 1 No. | 1 No. | -- |
| Test Block Rockwell Superficial 30N | -- | -- | -- | 1 No. |
| Steel Ball f1/16” | 5 Nos. | 5 Nos. | 5 Nos. | 5 Nos. |
| Allen Spanners | 3 Nos. | 3 Nos. | 3 Nos. | 3 Nos. |
| Clamping Device | 1 No. | 1 No. | 1 No. | 1 No. |
| Brinell Microscope | -- | 1 No. | 1 No. | -- |
| PVC Cover for Machine | 1 No. | 1 No. | 1 No. | 1 No. |
| Rubber Bellow | 1 No. | 1 No. | 1 No. | 1 No. |
| Instruction Manual | 1 Book | 1 Book | 1 Book | 1 Book |
Digital Rockwell Hardness Testing Machine
- Views: 158
-
Krutam Technosolutions - Product Code: TRS-DM
- Availability: In Stock
