Digital Shore Hardness Tester

Product Description

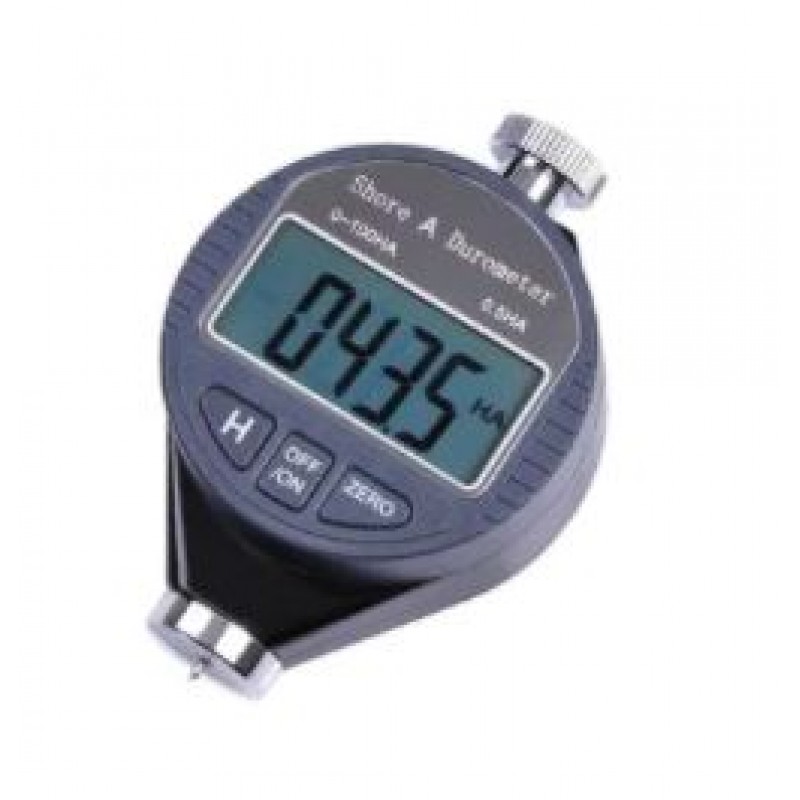

Digital Shore Hardness Tester  - MODEL: KTS-D01

Digital shore hardness tester is mainly used to measure the hardness of vulcanized rubber and plastic products; there are A, C, D three types. Type A and D are respectively suitable to measure the hardness of low, medium hardness and high hardness rubber. Type C is suitable to measure the hardness of cellular rubber and plastic material usually with the compression ratio 50%, the pressure more than 0.049MPa. The product confirms to the standards of GB/T531, GB2411, HG/T2489, and JB6148.Measuring range: 0- 100 degree

• Resolution:0.5HD
• Indenter tip stroke : 0-2 .5 mm
• LCD Display: 4 digits, 40 x 18 mm(1.57 x 0.71 inch)
• Power Supply: 1 x SR44 button cell battery (included)
• Item Size: 87 (L) x 56 (W) x 25 (D)mm (3.43' x 2.20' x 0.98' inch)
• Weight: 136 g (4.79 oz)
