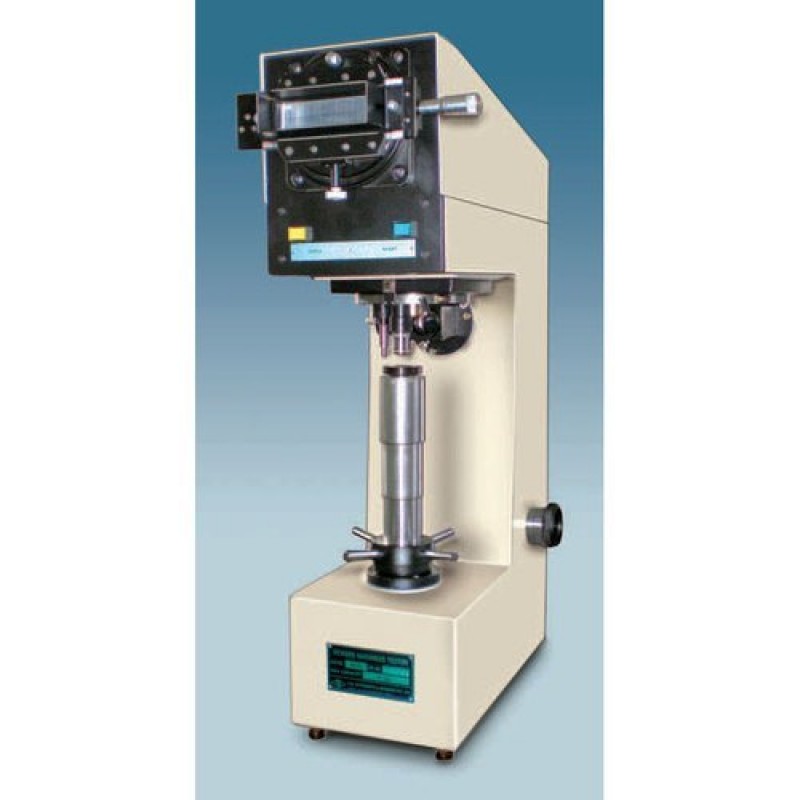

Optical Vickers Hardness Tester
Product Details :
| Model Name/Number | ASI-VHT |
| Brand | ASI |
| Hardness Scale | HV |
| Country of Origin | Made in India |
Vickers Hardness Tester is simple & accurate in design. It is suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard & their accurate results are widely acclaimed. These testers strictly conform to 15:1754-1968.
Standard Accessories
- Standard Test Block - 1 pc.
- Diamond Penetrator - 1 pc.
- Weights -1 set.
- Flat Anvil - 1 pc.
- Vee-type Anvil (Small and Big) - 1 pc. each
- Spanners - 1 set.
- Electric cord - 1 pc.
- Instruction Manual - 1 book
Salient Features
- Tiny indentation allows testing of a precision finished parts.
- Thin sheet metal are perfectly tested. Because applied load is very small.
- Motorised loading and unloading cycle.
- Built-in projection screen to get accurate results.
- Same hardness number is obtained on the same specimen, regardless of the load applied.
- Wide testing range, from soft metal such as lead, upto the hardest, like hardened steel.
Technical Specification :
Specification | Details |
Test Loads | 5,10,20,30,50Kg. |
Magnification of optical projection | 70X |
Max. Test Height (mm.) | 200 |
Scale least count(mm.) | 0.001 |
Depth of throat (mm.) | 133 |
Dimensions of Machine (mm.) | L585 x W290 x H860 |
Weight (Approx) | 73 kg. |
Power Supply | 220V AC, 50Hz, 1-Phase |
Additional Information:
