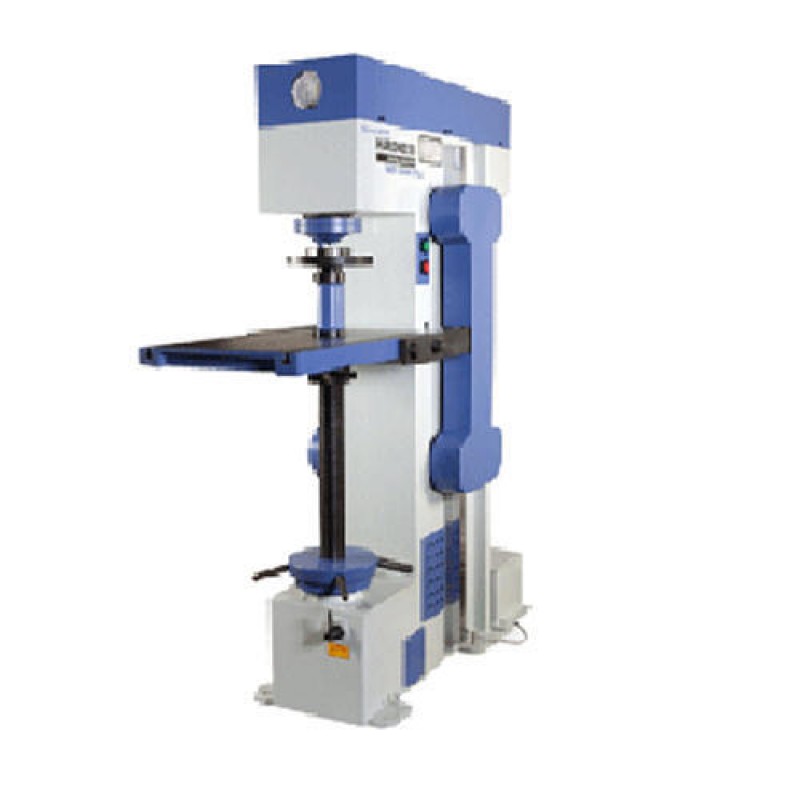

Special Brinell Hardness Tester
Product Details :
Specifications :
| Model | OPTFB-3000 | TFKB-3000 | TFKB-3000 (M) | OPTFB-3000-D |
| Loads Kgf | 400 to 3000 in stages of 250 | 500 to 3000 in stages of 250 | 500, 750, 1000, 1500, 2000, 2500, 3000 | 500 to 3000 in stages of 250 |
| Initial Loads Kgf | NIL | 250 | NIL | NIL |
| Max. test Height X Throat (mm) | 340 x 200 | 380 x 200 | 220 x 150 | 380 x 200 |
| Depth of elevating Screw below Base (mm) (Approx.) | 190 | 180 | 180 | 180 |
| Machine Height (mm) (Approx.) | 1226 | 1145 | 860 | 1225 |
| Size of Base (mm) (Approx.) | 380 x 740 | 380 x 740 | 250 x 500 | 380 x 750 |
| Nett. Weight - kg (Approx.) | 425 | 325 | 210 | 425 |
| Drive Motor – HP | 0.33 | 0.33 | -- | 0.33 |
| Mains – Supply | 415V, 50 Hz, 3 Ph AC | 415 V, 50 Hz, 3 Ph AC | -- | 415V, 50 Hz, 3 Ph AC |
| Independence Measurement | Direct reading optical device with 14 X Magnification | By separate Microscope | By Separate Microscope | Direct reading optical device& Digital Display with 14 X Magnification |
