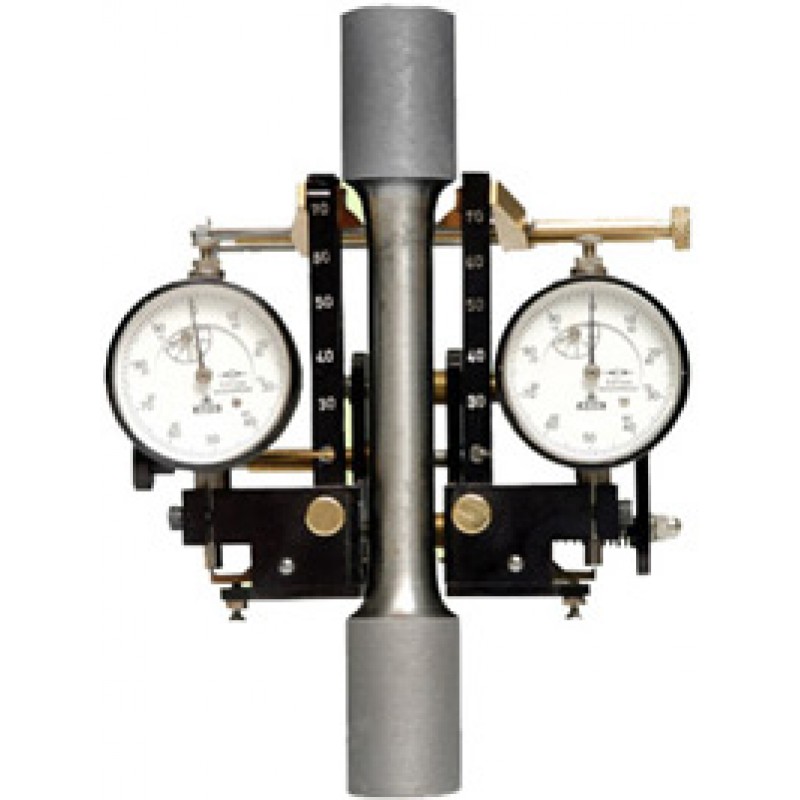

Mechanical Extensometer (Model FXT-3)
- It is an attachment to Universal Testing Machine and Tensile Testing Machines, used to find out the proof stress at the required elongation percentage.
- It measures the elongation of a test piece on load for the set gauge length.
- Least count of measurement 0.01 mm and maximum elongation measured upto 3 mm.
- Adjustable gauge length from 30 mm to 120 mm
- Round specimen from 1 mm to 20 mm dia and flat specimen from 1 mm to 20 mm thickness can be accommodated.
Technical Specifications - For Mechanical Extensometer (Model : FXT - 3)
Measuring Range : 0 - 3 mm
Least Count : 0.01 mm
Gauge length adjustable from : 30 - 120 mm ( 30 - 70 mm can also be given )
Specimen size : Round 1 to 20 mm or flat upto 20 x 20 mm
