NOTCH BROACHING MACHINE

Digital, Hand Operated, Coil Spring Testing Machines ( Model : STM )

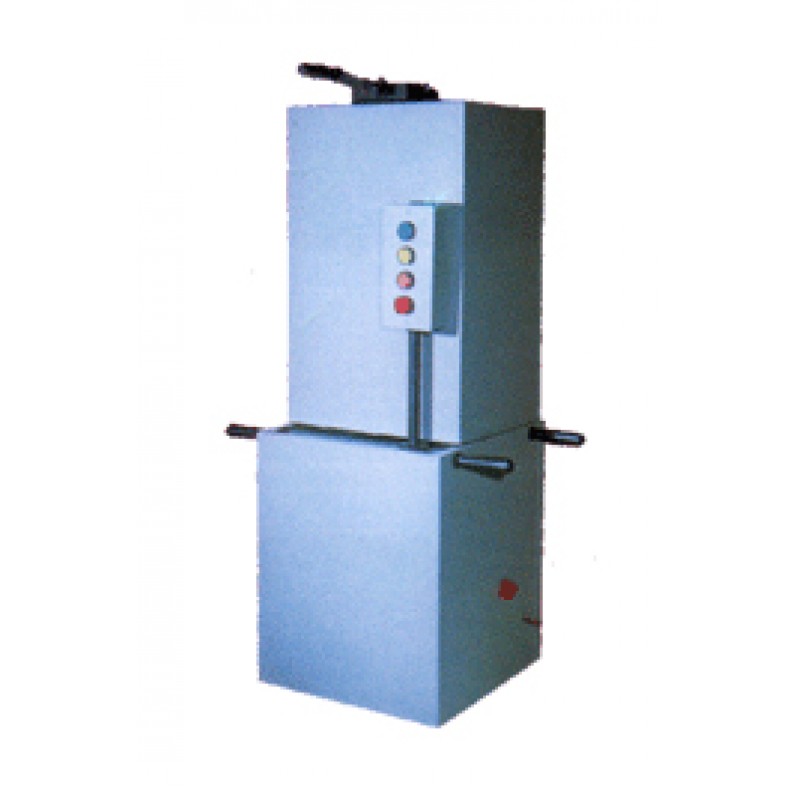

• The machine is a free standing unit built sturdily.
• The broach is mounted in a carrier, which is drawn by a twin lead screw
• mechanism through the full stroke with the help of 0.5 HP motor.
• V/U notch Broaching Machine fixture to clamp the specimen. The tooling includes the vice for holding the 10mm X 10mm specimen. The tooling / fixtures include the adjustors & the end stop necessary to ensure the notch depth & position accurately as per the standards.
• The approx. weight is around 100 kg.
• The machine dimension (approx.) 385mm X 385mm X 1050mm.

The machine will broach a notch in 10 mm square material to the following standards.

• A.S.T.M.A 370, E23
• DIN 50 115
• B.S. 131 : Part I, II, III, IV
• BS EN 10045 - 1993
• IS 1598 1977, IS 1757 1988, IS 1499 1977
