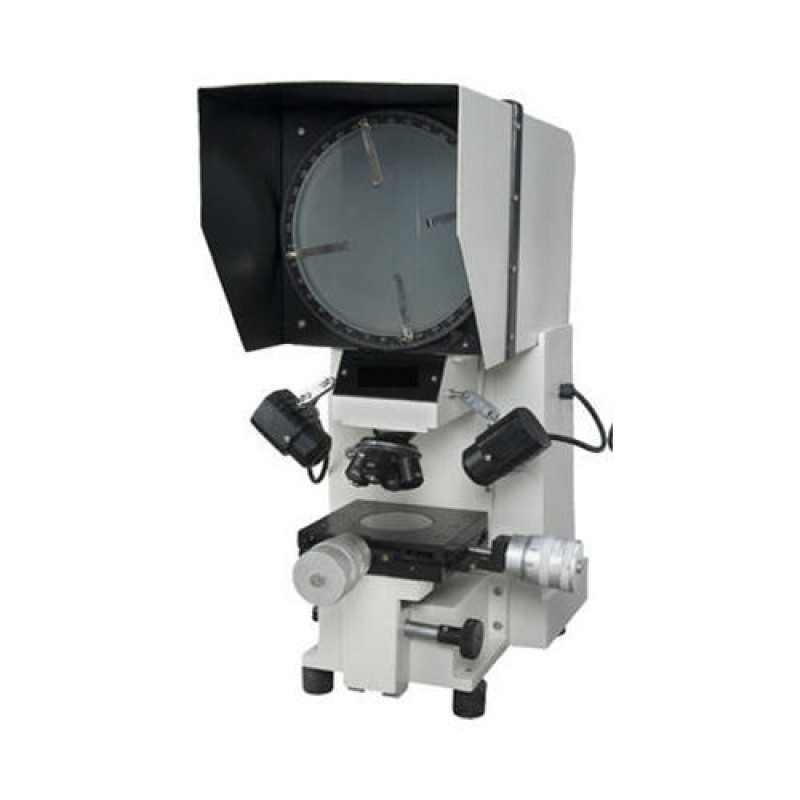

Profile Projector
Product Details :
Usage/Application | testing laboratory |
Material | steel |
Shape | Round |
Automation Type | Semi-Automatic, Automatic |
Color | white |
Operating Voltage | 230 |
Gross Weight | 30 kg |
Minimum Order Quantity: 1 Piece
Profile Projector : Having 300mm dia 360 degree rotatable graduated screen with 90 degree cross hair line for angle measurement, With X-Y movement on ball bearing slides travel upto 25 X 25 mm with Micrometer heads (50mm dia) least count of 0.01mm for length, width & depth measurement, providing different magnification ranges from 10x to 100x,Having both contour (12V/100W) lamp and two surface (6v/20W)lamps, with 4 following objective lenses in card board box
Standard Magnification : 10x,20x,40x,100x,
Additional Information :
- Delivery Time : standard
