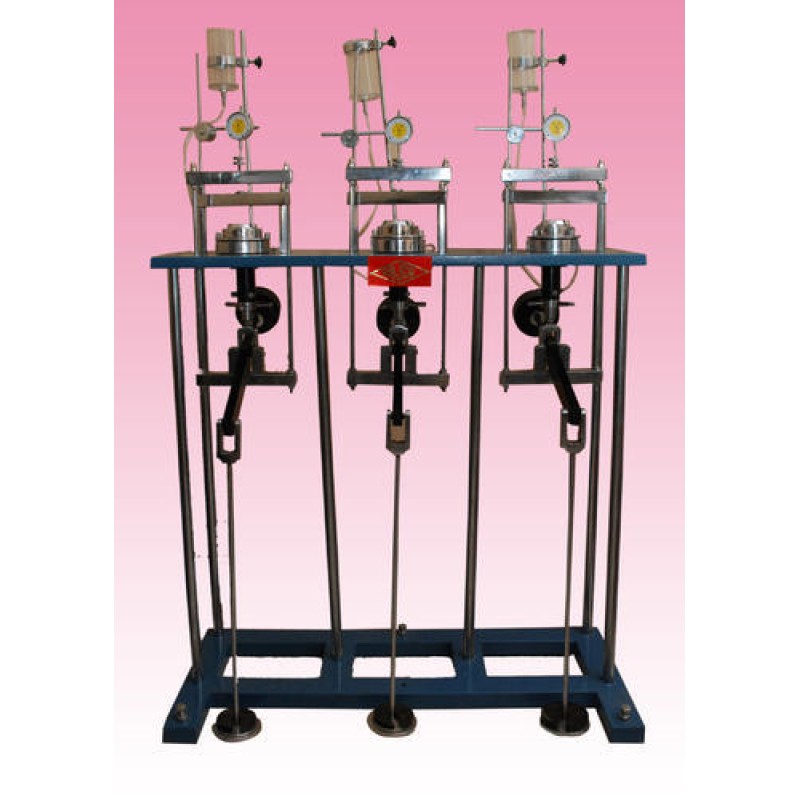

Rajco Consolidation Apparatus - 3 Gang

Product Details:

Minimum Order Quantity	1 Unit
Condition	New
Automation Grade	Automatic
Pressure	10 kg/cm2
Maximum Capacity	20 kg/cm2
Testing Dia	60x20 mm
Tube Material	Plastic



Consists of :

Loading Unit, maximum capacity 20 kg/cm² consisting of a

loading yoke connected to a lever arm with a counter-balancing

adjustment and having a lever ratio of 1:10, the whole

assembly being mounted on a steel frame stand. Consolidation

cell assembly, fixed ring type for testing 60mm dia x 20mm

thick specimens comprising: Fixed ring for specimen 60 mm

dia x 20 mm thick with a guide ring.

Top porous stone for 60mm dia, specimen. Bottom

porous stone for 60 mm dia specimen.

Pressure Pad, perforated.

Channelled base with water inlet.

Gasket.

Flanged water jacket.

Set of weights to give a pressure of 10 kg/cm2 on 60 mm

specimen Comprising : 7 off 0.05 kg/cm2, 5 off 0.1 kg/ cm2,

6 off 0.2 kg/ cm2, 6 off 0.5 kg/ cm2 and 5 off 1.0 kg/ cm2.

Water reservoir with plastic tube, T-Connection and pinch

Dial gauge, 0.01 mm x 25 mm travel single Gang.
