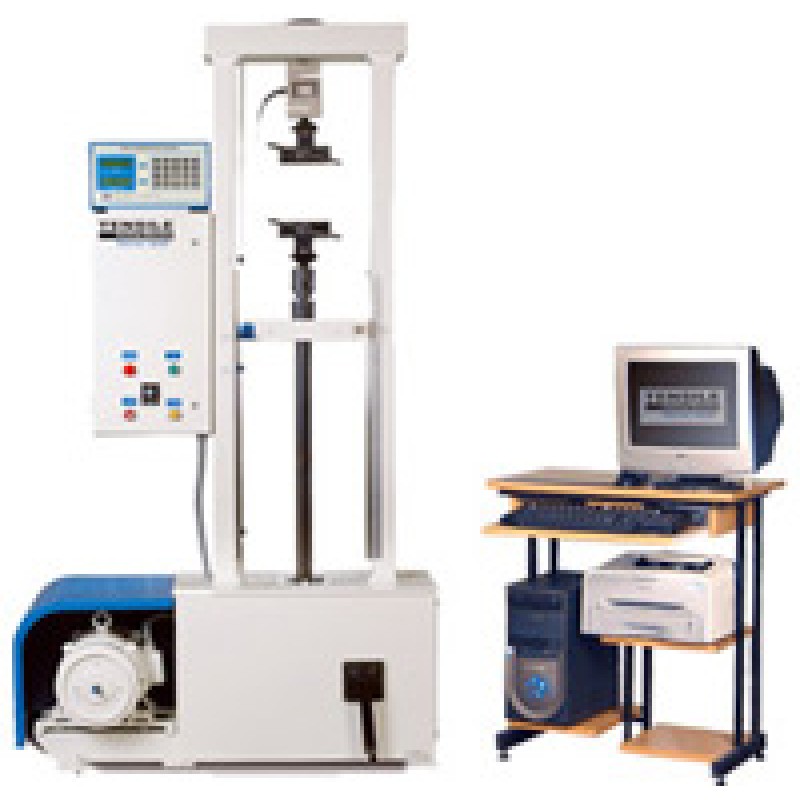

Tensile Testing Machines ( Model : TKG-EC )
- Latest Windows based, Users friendly, Accurate, Menu driven software.
- Fully automatic, on screen calculations based on the delivered data.
- Automatic Data capture, storage & graphic display.
- Recording, storage & retrieval of results & details.
- Build in facility for printing of test results and the graph.
- Load measurement by load cell.
- Over Load & Over travel safety.
- On line display of Load, Elongation & Graph.
- Tare load & reset elongation facilities available.
- Selectable units like N, kN, kgf, lbf, inch, mm, etc.
- Fully automatic on screen calculations like UTS, YS, Proof stress, etc.
- Electronic Extensometer (Optional) is available for proof stress evaluation.
- It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
- Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at extra cost. Standard displacement resolution is 0.1 mm.
- Types of tests, testing materials, grips, attachments, fixtures, straining speed as like Analogue version, Model : TKG.
- Various Models - Maximum Capacity from 200 N to 50 kN.
- Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
Technical Specifications - For Electronic / Computerized Tensile Testing Machines
MAX. CAPACITY | MODEL : TKG-E / TKG-EC | MODEL : TKG-E / TKG-EC | MODEL : TKG-E / TKG-EC | |||||
200 N | 500 N | 1000 N | 2500 N | 5000 N | 10 KN | 25 KN | 50 KN | |
Measuring anges | 0-200 N | 0-500 N | 0-1000 N | 0-2500 N | 0-5000 N | 0-10 kN | 0-25 kN | 0-50 kN |
Ranges LeastCounts | 0.02 N | 0.05 N | 0.1 N | 0.25 N | 0.5 N | 1 N | 2.5 N | 5 N |
Elongation Scale L.C | 0.1 mm | 0.1 mm | 0.1 mm | |||||
Grip Speration Minimum - Maximum - | 25 mm 1000 mm | 25 mm 750 mm | 25 mm 600 mm | |||||
Traverse Speeds Standard Speeds | 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. | 100 mm / min. | 25 mm / min | |||||
Optional Speeds | - | Additional speed of 50 mm/min | Alternative speed of 1.3 mm/min in place Of 25 mm/min OR 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. | |||||
Additional speed of 500 mm/min | ||||||||
Alternative speed of 1.3 mm/min in place of 100 mm/min | ||||||||
10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm/min. | ||||||||
Optional Variable speed drive stepless variation | 50 to 500 mm / min. | 10 to 100 mm / min. | 2.5 to 25 mm / min. | |||||
H.P (for standard speed) | 0.25 / 0.5 | 0.5 | 0.5 | |||||
Supply | 3 –Phase, 415 Volts, 50Hz, AC | |||||||
Over travel safety | Provided with each model |
NOTE : It is very important that while ordering the machine due care is taken in selecting proper capacity, traverse speeds, grip separation & grips. Following details should be furnished to ensure that testing of the materials is in conformity with the standards followed
- Size, shape, materials of test specimens.
- Minimum & Maximum breaking load for test specimen (Not strength).
- The standard IS / BS / ASTM etc. to be followed.
- Straining rate required.
- Please send representative samples.
Dumb-Bell Specimen Cutting Accessories
- Hand Operated Cutting Press, Size 150mm x 150mm
- Die overall length 50 mm as per IS:34 Part I & II, IS:5831
- Die overall length 75 mm as per IS:3400 Part, IS:434 Part I & II, IS:5831
- Die overall length 115 mm as per IS:3400 Part I, IS:2414, IS:2415 & IS:443
- Die overall length 152 mm as per IS:2076
Grips for Tensile Testing Machines ( All Versions )
MODEL | CAPACITY | DESCRIPTION | SPECIFICATIONS | APPLICATION |
TG 1/1 | 500 N | Eccentric Roller grip | 25 mm wide x 3 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG- 200 N & TKG -500 N |
TG 1/2 | 2 kN | Eccentric Roller grip | 25 mm wide x 5 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N & TKG-2500 N |
TG 1/3 | 2 kN | Eccentric Roller grip | 35 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG- 1000 N & TKG -2500 N |
TG 1/4 | 5 kN | Eccentric Roller grip | 50 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N & TKG-2500 N |
TG 1/5 | 5 kN | Eccentric Roller grip | 50 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG 5000 N & TKG 10 kN |
TG 2/1 | 2.5 kN | Cam type grip | 100 mm wide x 10 mm thick | For fabric strip suits TKG -2500 N |
TG 2/2 | 2.5 kN | Cam type grip | 100 mm wide x 10 mm thick | For fabric strip suits TKG -5000 N & TKG-10 kN |
TG 3/1 | 200 N | Vice type grip | 25 mm wide x 4 mm thick | For thin flat samples of smaller strength like paper etc suits TKG -200 N |
TG 3/2 | 5 kN | Vice type grip | 500 mm wide x 25 mm thick | For flat materials like asbestos, leather, fabric, plywood suits TKG -2500 N |
TG 3/3 | 5 kN | Vice type grip | 50 mm wide x 25 mm thick | For flat materials like asbestos, leather, fabric, plywood suits TKG -5000 N & TKG-10 kN |
TG 3/4 | 2.5 kN | Vice type grip | 20 mm wide x 5 mm thick | For rigid wires upto 1 mm and flat strips suits TKG -2500 N |
TG 3/5 | 5 kN | Vice type grip | 100 mm wide x 6 mm thick | For fabric specimen suits TKG-2500 N |
TG 3/6 | 5 kN | Vice type grip | 100 mm wide x 6 mm thick | For fabric specimen suits TKG -5000 N & TKG-10 kN |
TG 3/7 | 5 kN | Vice type grip | 200 mm wide x 10 mm thick | For fabric specimen suits TKG -5000 N & TKG -10 kN |
TG 5/1 | 2.5 kN | Wedge type grip | 25 mm wide x 5 mm thick | For flat strips and wires suits TKG -2500 N |
TG 5/2 | 10 kN | Wedge type grip | Round 5 to 10 mm Flat 25 mm wide x 10 mm thick | For round specimen or flat specimen suits TKG -5000 N & TKG -10 kN |
TG 5/3 | 50 kN | Wedge type grip | Round 5 to 10 mm Flat 35 mm wide x 12 mm thick | For round specimen or flat specimen suits TKG -50 kN |
TG 5/4 | 2.5 kN | Wedge type grip | Flat 25 mm wide x 20 mm thick | For extra thick plywood specimen suits TKG -2500 N |
TG 5/5 | 50 kN | Wedge type grip | Flat 200 mm wide x 5 mm thick | For geo textile as per ASTM suits TKG -50 kN |
TG 5/6 | 50 kN | Wedge type grip | Flat 38 mm wide x 20 mm thick | For extra thick specimen like plywood suits TKG -25 & 50 kN |
TG 6/1 | 2.5 kN | O ring test fixture | - | For testing O rings suits TKG -2500 N |
TG 7/1 | 500 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -200 N & TKG -500 N |
TG 7/2 | 1000 kN | Bollard type grip | Tape width 6 mm max. | For HDPE tape suits TKG -1000 N |
TG 7/3 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -2500 N |
TG 7/4 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -10 kN |
TG 7/5 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -25 kN & TKG -50 kN |
TG 7/6 | 5 kN | Bollard type grip | Dia 4mm ropes. | For non metallic ropes / cords of nylon etc suits TKG -5000 N |
TG 8/1 | 10 kN | Vice cum wedge type grip | Upto 5 mm dia, Flat 25 mm wide x 5 mm thick | For wires and flat strips suits TKG -10 kN |
TG 8/2 | 50 kN | Vice cum wedge type grip | Round 5 to 10 mm, Flat 35 mm wide x 10 mm thk | For wires. Rods, and strips suits TKG -25 kN & TKG -50 kN |
TG 8/3 | 50 kN | Vice cum wedge type grip | Flat 35 mm wide x 5 mm thick. | For harder wires and strips suits TKG -25 kN & TKG – 50 kN |
TG 8/4 | 50 kN | Vice cum wedge type grip | Flat 60 mm wide x 10 mm thick. | For wider flat strips suits TKG -25 kN & TKG -50 kN |
TG 9/1 | 10 kN | Special Bollard grip | Dia 10 to 16 mm | For Nylon ropes suits TKG -10 kN |
TG 9/2 | 25 kN | Special Bollard grip | Dia 10 to 16 mm | For Nylon ropes suits TKG -25 kN & TKG -50 kN |
TG 9/3 | 50 kN | Special Bollard grip | 50 mm wide | For flat belts and strips suits TKG -25 kN & TKG -50 kN |
TG 9/4 | 50 kN | Special Bollard grip | 100 mm wide | For flat belts and strips suits TKG -25 kN & TKG -50 kN |
TG 10/1 | 10 kN | Grip for special shaped specimen | As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -2500 N |
TG 10/2 | 10 kN | Grip for special shaped specimen | As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -10 kN |
TG 10/3 | 10 kN | Grip for special shaped specimen | As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -25 kN & TKG -50 kN |
TG 11/1 | Tensile Testing Machines ( Model : TKG-EC ) |
