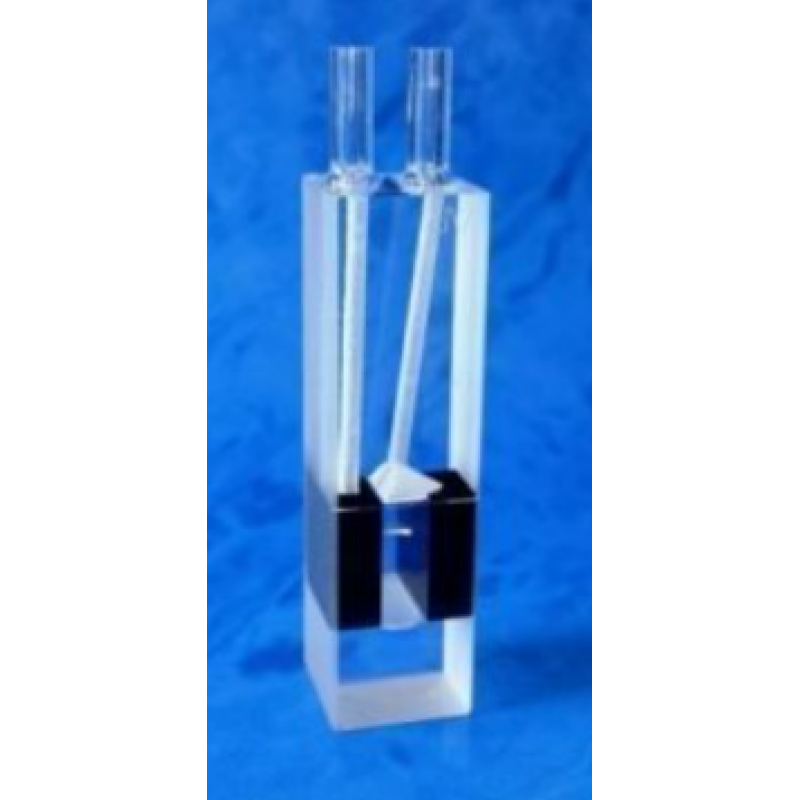

Micro Black Flow Through Cell (Lightpath 10mm)

LARK’s black micro spectrophotometer flow cell.

Features of Micro Black Flow Through Cell:

• Highly accurate results, only need to test sample once.

• Premium quality: Cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.

• Made by hand, ensuring high quality optical polishing with no defects.

• Each cell goes through a rigorous inspection process before leaving our factory.

• It fused to ensure that cuvettes are robust and durable.

• Comes in several different materials: (UV Quartz and IR Quartz)

• Available in 10mm lightpath

• Two windows polished

• Inlet/outlet tube dimensions: OD 3mm x ID 1.5mm x L 8mm

• Tubes are made of quartz

Lightpath	Outer Length	Outer Width	Outer Height	Chamber Length	Chamber Width	Chamber Height	Z- Dimension	Capacity
10mm	12.5mm	12.5mm	45.0mm	10.0mm	4.0mm‏	11.0mm‏	15.0mm‏	0.440ml
