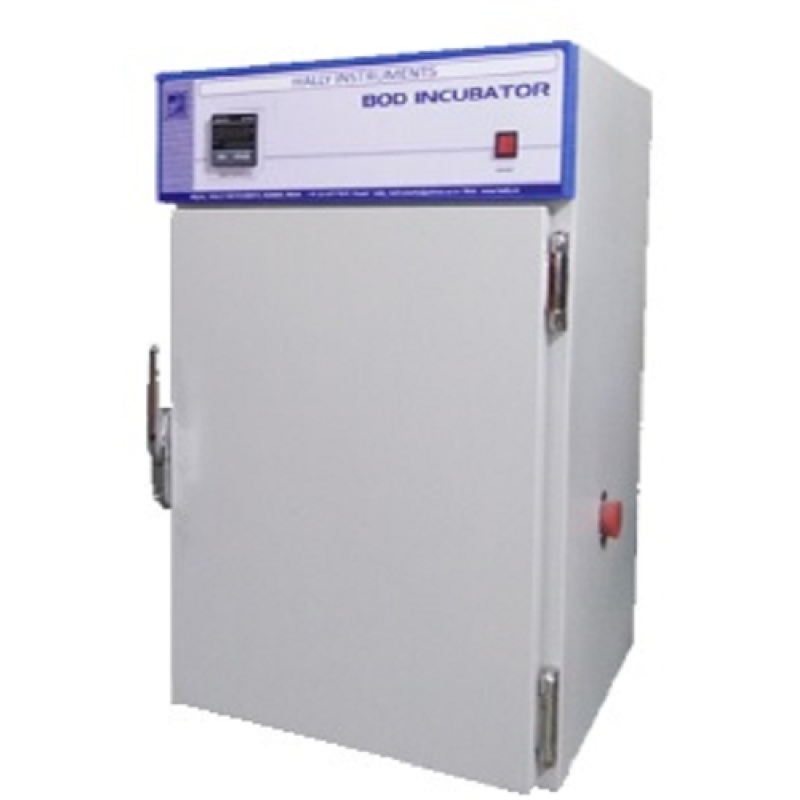

Bod Incubator

Product Details:

Model Name/Number HBOD
Brand HALLY make
Usage/Application For Microbilogy application
Color White
Chamber Volume form 50 to 2000 L
Number Of Shelves 2 to 10
Temperature Range 5 to 75 degree celsius
Voltage 230 VAC
Frequency 50 Hz
Material STD Model - Outer M S Powder coated / Inner SS 304 & GMP Model ( ZZZComplete SS )
Warranty One Year
Capacity from 50 L to 2000 L
Features Microprocessor based controller ( PLC with spftware optional )
Accuracy +- 0.5 DegreeC
Air Circulation Back Motor
Alarm High / Low Audio Visual Alarm
Automation Grade Can be upgraded with PLC Touch Screen
Compressor Copland Make
Cooling System Hermatically Sealed Compressor using CFC Free Gas
Display Type LCD / Digital / HMI
Door Type Double door
I Deal In New Only
Dimension from 50 L to 2000 L
Temp Range 5 DegreeC to 60 DegreeC
Temp Accuracy +- 0.5 Deg C

The BOD Incubators we manufacture are designed primarily for the necessities of Bio Chemical Oxygen Demand test Equipment. These incubators are appropriate for closed control of incubation & storage temperature.

Applications Areas:

• B. O. D. Test
• Storage sensitive cultures

• Vaccines
• Culture of bacteria

• Microganism
• Serum incubation seed germination

Construction:

• Double wall construction
• Stainless steel for inner chamber with mirror finish buffing

• Outer chamber made of CRCA Epoxy powder coat finish.
• Glass wool / PUF insulation to prevent temperature loss

• Full length inner plexi-glass door for viewing sample
• Castor wheel for easy accessible

Control Panel:

• Digital display with mains ON/ OFF switch indicating lamps & fuse

Optical Features:

• ICH Guide Lines followed.
• S. S. removable trays.

• Safety Thermostat to prevent over shoot, Individual HRC fuse for all controls
• Bacteriological incubators are non refrigerated version for temp Range of ambient 50 to 600°C

Technical Specification
