High Temperature Muffle Furnaces

High Temperature Muffle Furnaces

Product Details :

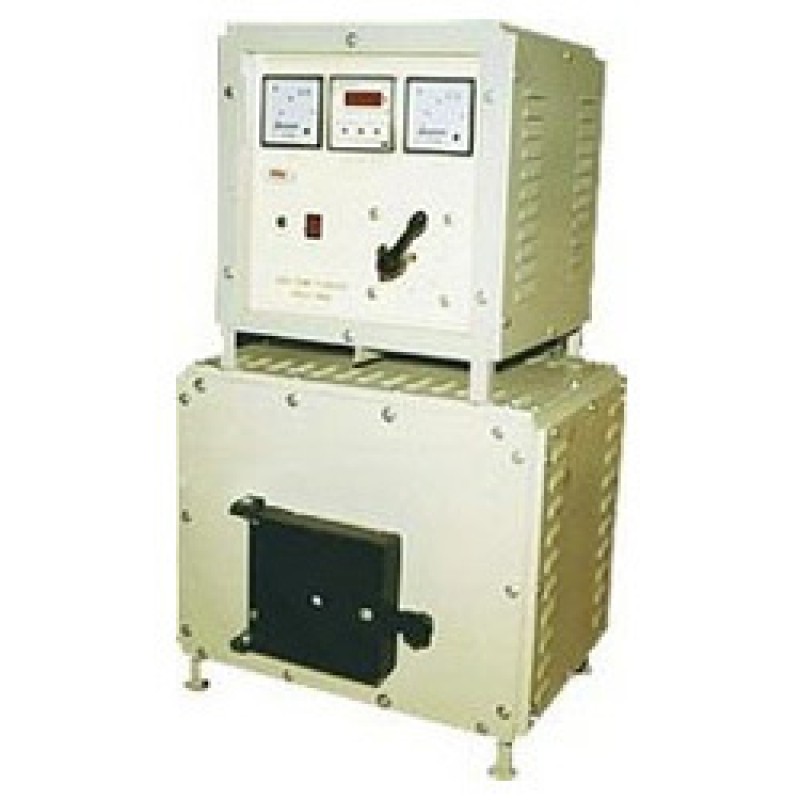

High Temperature Muffle Furnace 1400°C

The unit is specially designed to meet the requirement of High Temperature 1400°C, the casing is made of M.S. reinforced with iron angles duly painted, Chamber made of Ceramic Zirconium Board and elements are placed Horizontally in the chamber. Heating is done by imported Silicon Carbide Rods duly controlled by accurate step down Transformers (Air cooled), it saves energy up-to30% with easily replaceable Carbide Rods. These Furnaces have outstanding Temperature reliability and has large surface radiation ratio to enhance thermal efficiency and power consumption. Control panel is fitted with Digital Temperature Indicator cum Controller up-to 1400°C Control panel is provided separately having Ammeter Volts Meter and Digital Controller, etc. Maximum Furnace Temperature up-to 1400°C, working Temperature up-to 1350°C opera-table in 220 Volts Single Phase AC supply.


Specification :

Muffle Size (W x H x D)
Rating
100 x 100 x 225 mm
2.50 KW
125 x 125 x 250 mm
3.50 KW
150 x 150 x 300 mm
4.00 KW
200 x 200 x 300 mm
4.00 KW
200 x 200 x 300 mm
5.00 KW
300 x 200 x 300 mm
5.00 KW
