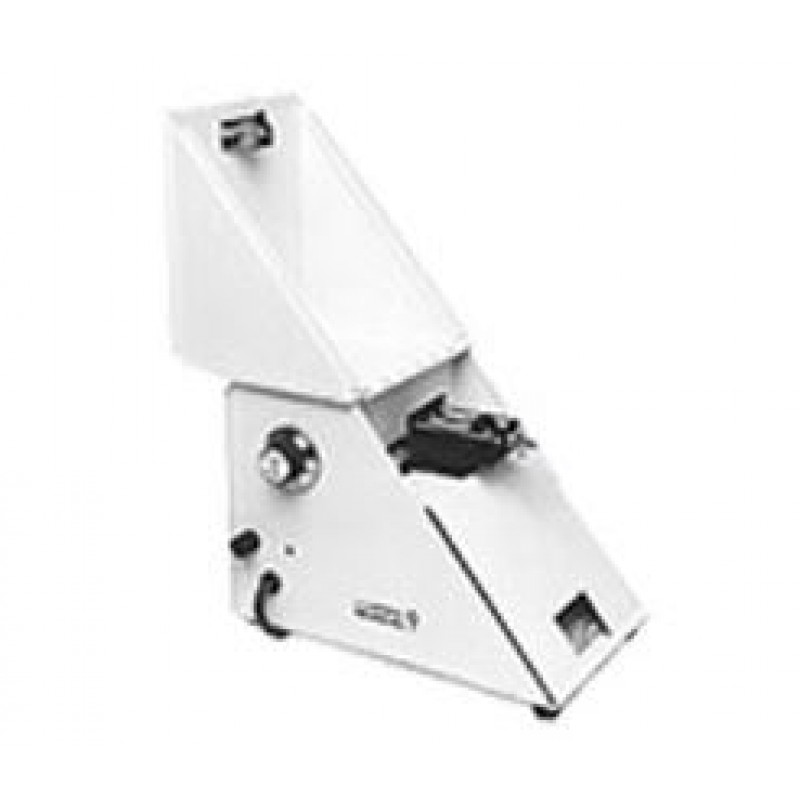

Mixer / Mill  5100

Small high-energy ball mill that accommodates sample sizesranging from 0.2 - 1.5 grams. Ideal for grinding andpulverizing brittle samples, slurry grinding, and mixingpowders.

Typical samples include: Rocks, Minerals, Sand, Cement, Slag, Ceramics, Catalyst Supports, Glass, Pharmaceuticals, Plant and Animal Tissues, Seeds

FEATURES

• Also called a shaker mill or high-energy ball mill.
• Equipped with safety interlock system for operator protection.
• For grinding samples in the 0.2 - 1.5 gram range or mixing up to 5 mL of sample.
• Highly effective laboratory impact grinder and blender offering many advantages over other small mixers.
• Holds three vials of 1/2 in. (12.7 mm) diameter or two vials of 3/4 in. (19.1 mm) diameter. Length of vials up to 21/4 in. (57.2 mm).
• Push-button, resettable 30-minute timer on the 5100-115 Mixer/Mill.
• Push-button, resettable 72-minute timer on the 5100-230 Mixer/Mill.
• Reduces samples to analytical fineness and commonly used to blend samples with KBr for IR analysis.
• Shock mounted motor enables bench top operation.
• Steel housing protects the clamp mechanism and rugged construction ensures a long life of heavy work.
• Wide selection of grinding and mixing vials available including polystyrene, polycarbonate, hardened steel, stainless steel, tungsten carbide, and agate.
