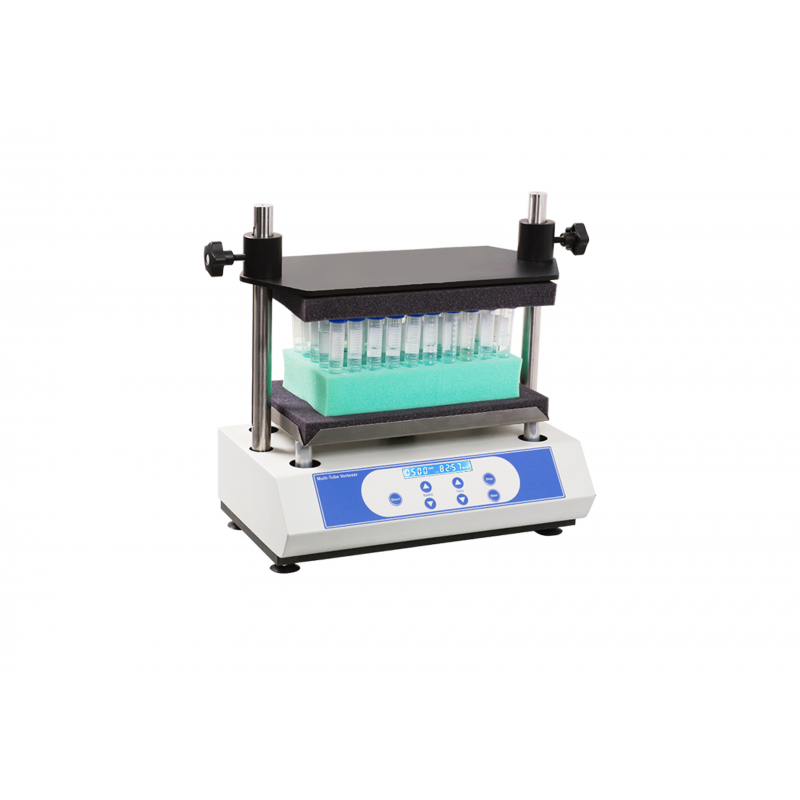

Multi-Tube Vortex — MTV-100

MTV-100 multi-tube vortex can mix up to 50 samples at a time. A variety of accessories can be selected to meet the needs of vortex mixing of test tubes of different specifications.

Features :

• Can process 50 samples at a time

• Standard 12mm foam test tube rack, tray pad

• Multiple safety protection functions. Conforms to CE safety standard, safe and reliable

• Pulsing Mode:

Programmable pulsing mode allows users to adjust the pulse-on and pulse-off times between 1~59 seconds in 1 second intervals. This feature enhances the vortex action by creating a vigorous mix

• Microprocessor Control:

The variable speed microprocessor control provides consistent uniform mixing action

• LCD Display:

Independent LCD displays for speed and time allow operator to view both settings

• Applications:

Suspensions, high throughput testing in clinical, environmental, and chemistry labs

Specifications :

• Model
  MTV-100
• Mixing orbit
  3.6 mm
• Shaking speed
  500-2500 rpm
• Timer range
  1 min-99 h59 min
• Weight
  4.5 kg
• Speed accuracy
  10 rpm
• Tray dimension (L×W) mm
  310×180 mm
• Dimension (L×W×H) mm
  426×250×480 mm
• Weight
  21.5 kg
• Power
  60 W
