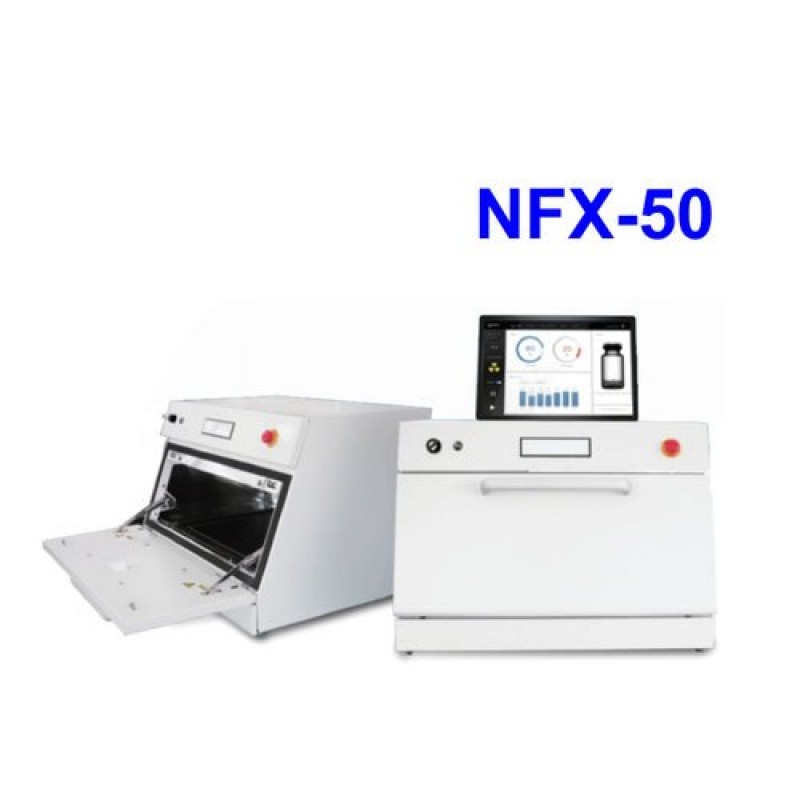

NFX Desktop X Ray lnspection System

Product Details :

Dimensions	525x675x495 mm
Weight	95 Kg
Model Number	NFX-50
Max Irradiation Area	145.4x114.9 mm
Tube Voltage	50 Kv
Tube Current	0.2 mA
Focal Spot Size	30 i m
Grayscale	14-bit (16384 shades of grayscale)
Resolution	1944 x 1536 (2.98 Me gapixels)
Pixel Size	75 I m
Exposure Time	38 ms to 10 s
Detection Space	230x290x190 mm
Detector Tilt	70 Degrees
Operating System	Microsoft Windows 7,64 bit
Display Unit	21.5 inch LED with touch screen
Humidity	30 %

Other Details:
·         Wide Angle characteristic can shorten irradiation object distance Max. irradiation area: 145.4 x 114.9 mm
·         Low energy consumption : Domestic
·         AC Power Supply 110V Save above 75% electricity consumption than conventional X-ray tube
·         Compact, portable, space-saving and flexible for detection supports on production lines
·         High transparent image quality and resolutions Small spot size: 30μm
·         The only transmission X-ray manufacturer in Taiwan
