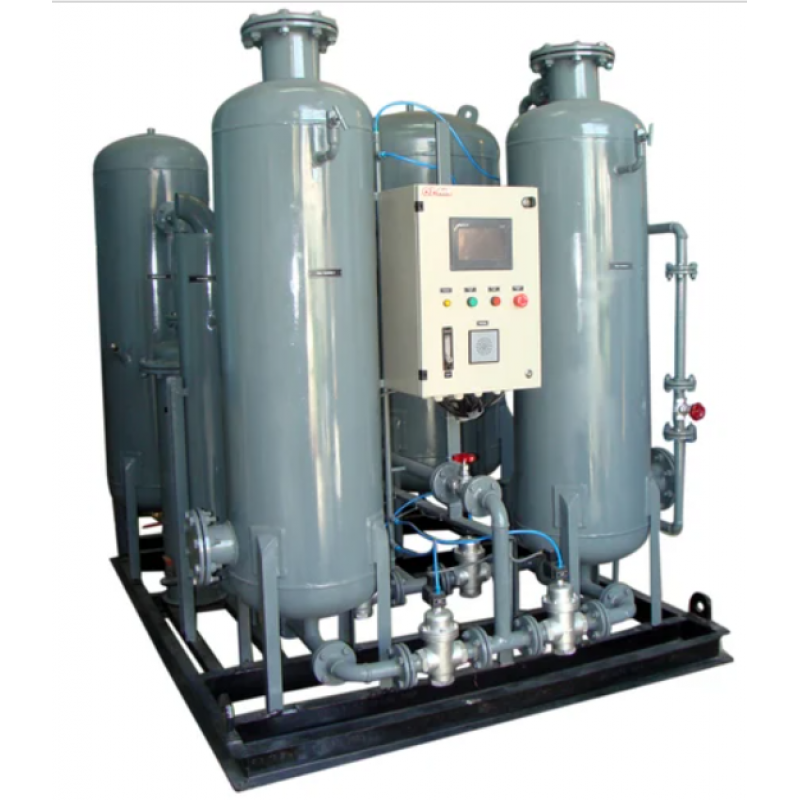

Nitrogen Gas Plant (PSA Based)

Product Details:

Automatic Grade	Automatic
Capacity	1 to 150 Nm3/hr
Brand	OZ-AIR
Material	MS
Purity	50% to 99.999%
Output Pressure	5.0 to 6.0 kg / Cm3
Nitrogen Purity	95 to 99.99%
Nitrogen Capacity	2 to 300 nm3/hr
Nitrogen Pressure	6 to 12 Bar
Nitrogen Dew Point	(-)40 Degree Centigrade or better

We design, develop and manufacture a stellar range of Nitrogen Plants PSA Based. Designed to be compact and sturdy, these nitrogen plants are highly efficient and deliver high levels of performance at all times. The nitrogen plants require low levels of maintenance and can be custom developed as per the needs and specifications of our customers. Nitrogen Generators (P.S.A. Based) We design and manufacture a superior range of nitrogen generators with proprietary techniques that provide high efficiency of gas separation. We have the capability to design and develop nitrogen generators as per the requirements of our customers. How it works? The nitrogen generator produces nitrogen gas from atmospheric air using molecular sieves separation technique. It uses a carbon molecular sieve which has ability to preferentially remove oxygen from air. Our proprietary technique gets higher efficiency of gas separation.


Advantages :

• Automatic Start-up time is only 5 - Minutes
• Nitrogen gas supply always under your control
• Self-contained skid mounted units for easy site installation
• Very low maintenance costs
• Very high reliability to run UN-attended plant
• Carbon Molecular Sieves life is minimum 15 - years and in most cases it lasts the whole life time of Gas Generator
