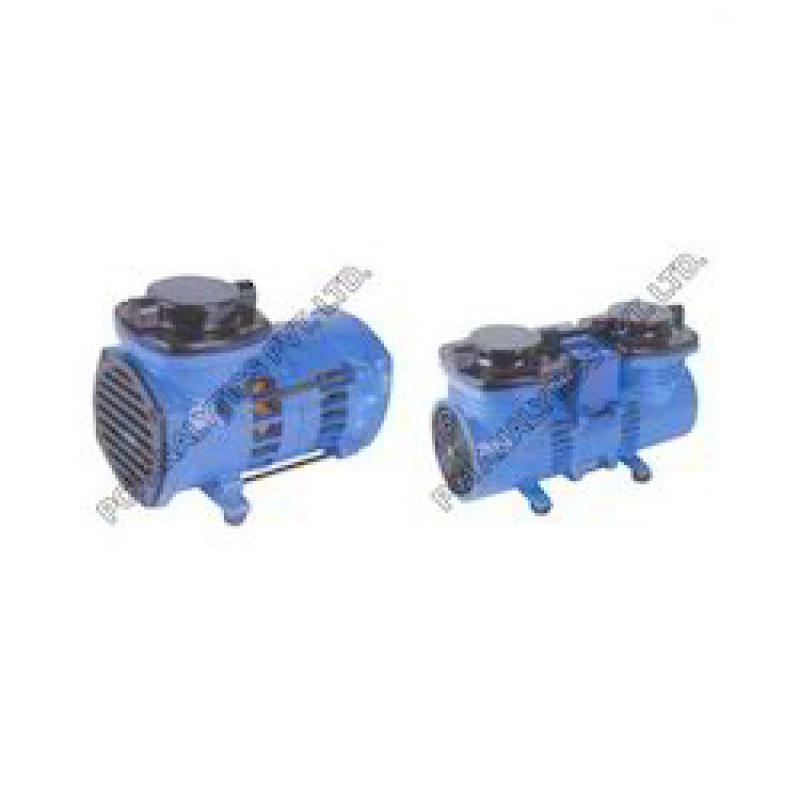

Oil Free Diaphragm Type Vacuum Pump
Product Details :
| Power Source | Electric |
| Type | Diaphragm Vacuum Pumps |
| Material | Stainless Steel |
| Number of Stages | Single stage |
| Brand | PCI Analytics |
| Voltage | AC 110 V |
Model | Max Flow (Ltrs/min) | Max. VACCUM (inches / mm Hg) | Max Pressure (PSIg) | Approx Weight (kg) | MOTOR HP | Approx Dimensions (mm) |
PCI-15 | 15 | 22” (554MM) | 25 | 3.0 | 1/20 | 175 X 110 X 150 |
PCI-25-S | 15 | 27”(680MM) | 35 | 5.5 | 1/16 | 220 X 110 X 150 |
PCI-25-P | 25 | 22” (554MM) | 25 | 5.5 | 1/16 | 220 X 110 X 150 |
PCI-25-AX | 15 | 27”(680MM) | -- | -- | 1/16 | --- |
PCI-45 | 45 | 22” (554MM) | 35 | 7.0 | 1/8 | 200 X 125 X 200 |
PCI-45-CRP | 30 | 22” (554MM) | 10 | 7.0 | 1/8 | 220 X 150 X 220 |
PCI-75-S | 45 | 27”(680MM) | 55 | 12.5 | 1/4 | 300 X 130 X 200 |
PCI-75-P | 75 | 22” (554MM) | 40 | 12.5 | 1/4 | 300 X 130 X 200 |
PCI-75-CRP | 38 | 22” (554MM) | 10 | -- | 1/4 | --- |
ROCKER-300 | 17 | 24”(600MM) | 12 | -- | 1/4 | --- |
PV-300 | 17 | 90 mbar | 12 | 4.1 | 1/4 | --- |
Salient Features:-
• No Lubrication required
• Absolutely Portable
• Totally Oil-free construction
• Practically maintenance-free
• Diaphragms are made of special 2-Ply Nylon reinforced neophrene rubber
• Special diaphragms available (TEFLON / VITON etc.)
• Value made of SS 316 material
• Pumps available with single as well as 3-phase motors
• Pumps available with flame proof motor
• Pumps available with 12/24V/48 Volts DC
• Pumps available with Chemical resistive Parts (PP, TEFLON contact parts) (CRP suffixed models)
• Pumps available with SS 316 contact parts
• Pump available for Gas charging in A/Cs (Model PCI-25- AX)
