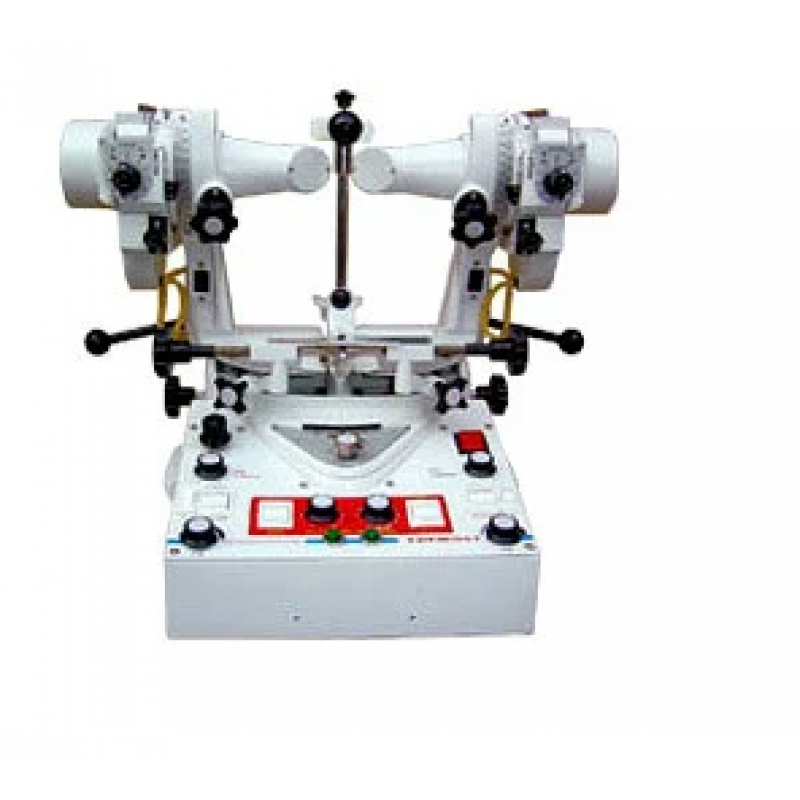

Ophthalmic Synoptophore
Product Details:
Our company Offers wide range of Synoptophore that are available with a power supply of 220 vac. We offer Synoptophore with an addition instrument table with manual or motorized operation system and a haidinger brush attachment as per the choice of the client. These Synoptopores have an auto flashing for slide illumination with simultaneous or alternative modes. With five modes of slide illumination that can be selected by a single selector knob, these instruments can be custom made by our clients as per their specific requirements.

movement of optical tubes	horizontal: adduction 50 deg abduction - 40 deg vertical: hyper 30 deg hypo 30 deg torsional: encyclo 20 deg excyclo 20 deg
slide illumination	by rheostat controlled 6 v lamp for each slide. After image illumination by 6 v lamp
auto flashing	auto flashing of slide illumination either simultaneously or alternatively in rapid & variable modes
mode & mode selection	five modes of slide illumination namely normal, flashing right, flashing left, flashing r l & auto flashing can be selected by a single selector knob.
dimensions	longitudinal: 30. 3 cms lateral: 25. 5 cms vertical: 36. 5 cms weight: 12 kgs
power supply	220 vac
standard accessories	a set of slides containing 9 pairs one power cord one dust cover spare 6 v bulbs (2 nos)
optional accessories	instrument table: manual or motorized haidinger brush attachment
