Low Cost Profile Projectors

Product Details :

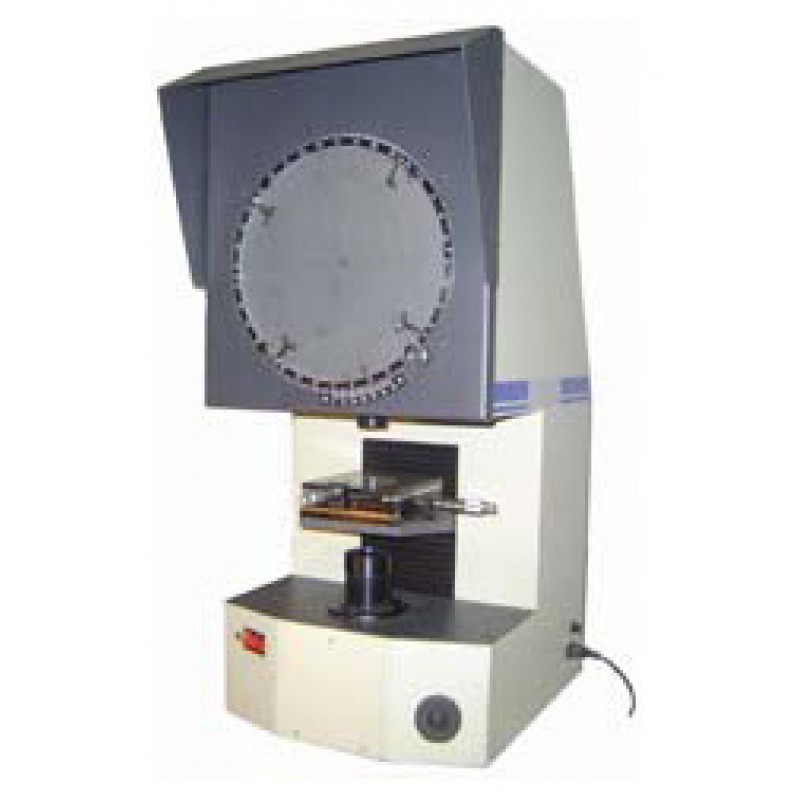

Model 300T

Screen :

• Glass screen - Ø 300mm with crosslines

Magnification :

• 10x, 20x, 50x

Workstage :

• Size of Top Plate - Sq. 145 mm
• Measuring Traverse - X:25 mm, Y:25mm
• Working Area - Ø 60 mm
• Load Capacity - 5 Kgs
• Max Dia - 60mm

Measuring Systems :

• Linear - 0-25mm with L. C. 0.010
• Angular - 360º Graduated rotary screen with vernier Tungsten Halogen lamps

Illumination Systems :

• Profile - 12V 50W
• Surface Illumination - 12V 50W- 2 Nos.

Power Supply :

• 220V, 50Hz, 10A

Weight :

• 65 kg (Unpacked)

Dim :

• (L x W x H) 630 x 430 x 945

------------------------------------------------------------------------------------------------------------------------------------------------------

Model 300V

Screen :

• Glass screen - Ø 300mm with crosslines

Magnification :

• 10x, 20x, 50x

Workstage :

• Size of Top Plate - Sq. 145 mm
• Measuring Traverse - X:25 mm, Y:25mm
• Working Area - Ø 60 mm
• Load Capacity - 5 Kgs
• Max Dia - 60mm
