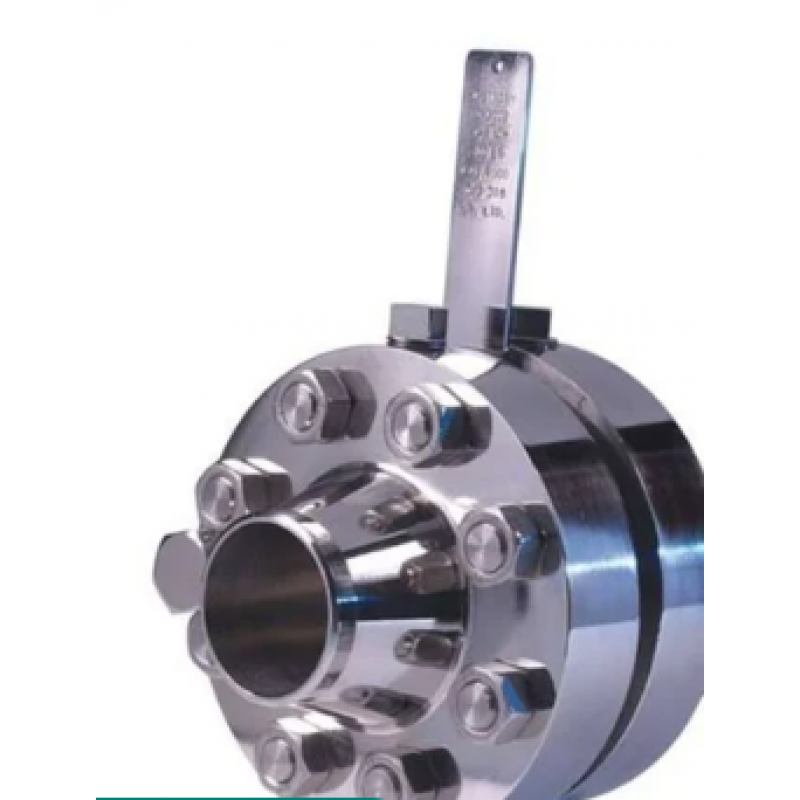

Orifice Plate Assembly
Product Details:

Brand	ELECTRONET
Line Size	15 NB to 1000 NB (1/2 inch to 40 inch)
Accuracy	+/-1% of F. S.
Material of Gasket	CAF, SWG, PTFE & Other as per requirement
Material of Flange	A105, A 182-F316, A 182-F304, A 182-F11, A 182-F22 & Other as per requirement
Model	ORIFICE PLATE ASSEMBLY

Electronet series Orifice flanges are intended for use instead of standard pipe flanges when an orifice plate or flow nozzle must be installed. Pairs of pressure tapping are machined into the orifice flange, making separate orifice carriers or tapping in the pipe wall unnecessarily. The range of orifice flanges covers all standard sizes and ranges, and all common flange materials. Flanges are available in socket weld or weld neck form and are typically supplied with two ½" NPT tapping in each flange. Jacking screws to ensure ease of removal of the primary flow element is provided. Orifice flanges are supplied complete with bolting and gasket kits.
