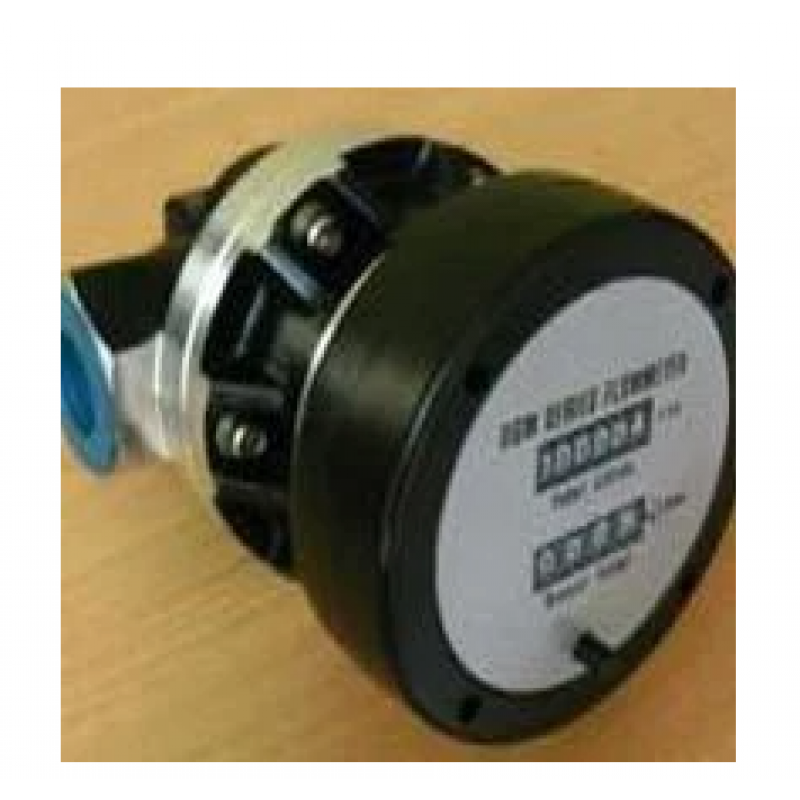

Oval Gear Flow Meter
Product Details:
Mostly used in applications such as petroleum, petrochemical and process control, Oval Gear Flow Meter works on the principle of allowing fluid to enter the inlet port and then passing through the metering chamber. Inside the metering chamber, fluid forces the internal gear to rotate before exiting the outlet. The wide range of Oval Gear Flow Meter comes in different specifications, as per the need of the client. Furthermore, Oval Gear Flow Meter is known for its smooth functioning, compact design, accuracy, and enhanced functionality. FeaturesViscosity fluids.Positive displacementTemp up to 200 degree c(70 degree c std.)Pressures up to 670 Bar ( 20 Bar Std)Reed switch/Solid State Hall EffectViscosities 1 to 1000000 cP(1000CPStd)0.5 and 1% accuraciesLow pressure lossExcellent chemical resistance0.1% RepeatabilityCompact designFlows from 1mL/Min (150cP)In housedesigned & ManufacturedWide rangabilityChoice of materialsInherently linearBi-directionalOnly two moving partsScrewed, Flanged or Tri-Clamp Connection optionsBody's available in Aluminum, Stainless SteelElectronic Display options
SpecificationsModel /Size Flow Range Std.Fitting Accuracy in %2805/ 6 NB 1-50 LPH ¼ “ BSP 1.02811/ 6 NB 5-100 LPH ¼ “ BSP 1.02812/ 6NB 25-500 LPH ¼” BSP 1.0815/15 NB 1-35 LPM ½” BSP 0.52820/20 NB 1-35 LPM ¾” BSP 0.52825/25 NB 6-120 LPM 1” BSP 0.52840/40 NB 10-250 LPM 11/2” BSP 0.52850/50 NB 15-350 LPM 2” BSP 0.52875/80 NB 66-616 LPM 3” FLANGE 0
