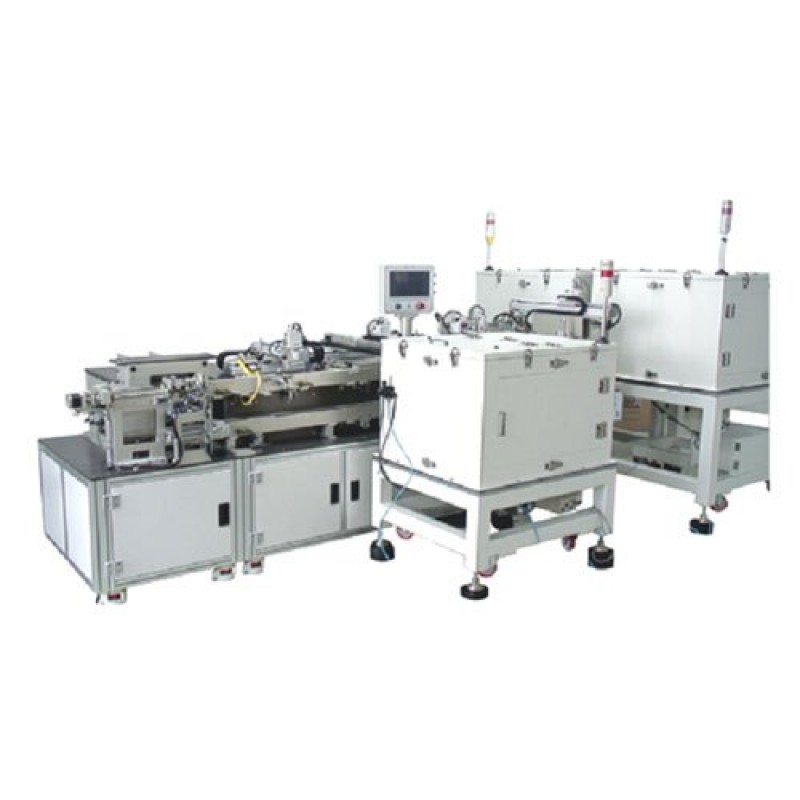

PAG-501 Automatic Slitting And Botting System
Product Details :
Automation
Grade | Automatic |
Material | Mild
Steel |
Capacity | 320
Bottles/hour |
Dimension | 3900(L)
x 1200(W) x 1500(H) mm |
Power | 110
or 220VAC,1P,50/60Hz |
Current | 3.5KVA,15A |
Description:
- For processing Bad (defects-marked) type of row card
- PAG 501 is a fully automated slitting & bottling system which is specifically developed to process the No Good (NG) type of rows that have any number of defective cells.
- The systems operation is similar to the PAG440 but with an added function of vision inspection where the system automatically fills-up the bottle with only of the good and acceptable cells (strip) while discarding any types of NGmarked or defective cells.
- The automatic defect-scrapping process makes this system very costeffective as it reduces production cost while improving quality control.
FEATURES:
- Automatic discarding of defective cells (defects of dispensing, lamination, etc.)
- Non-stop continuous automatic action for the ultimate production benefits
- Auto bottle-feeding by bowl feeder
- Robotic modular system for material feeding and transporting
- Adjustable quantity of cells per bottle (standard: 25cells, option: 10, 50cells)
- High precision slitter for maximum cut accuracy
- Easy removal of blade head for easy cleaning and maintenance
Additional Information:
- Item Code: PAG-501
- Production Capacity: 100
- Delivery Time: 30 Day
