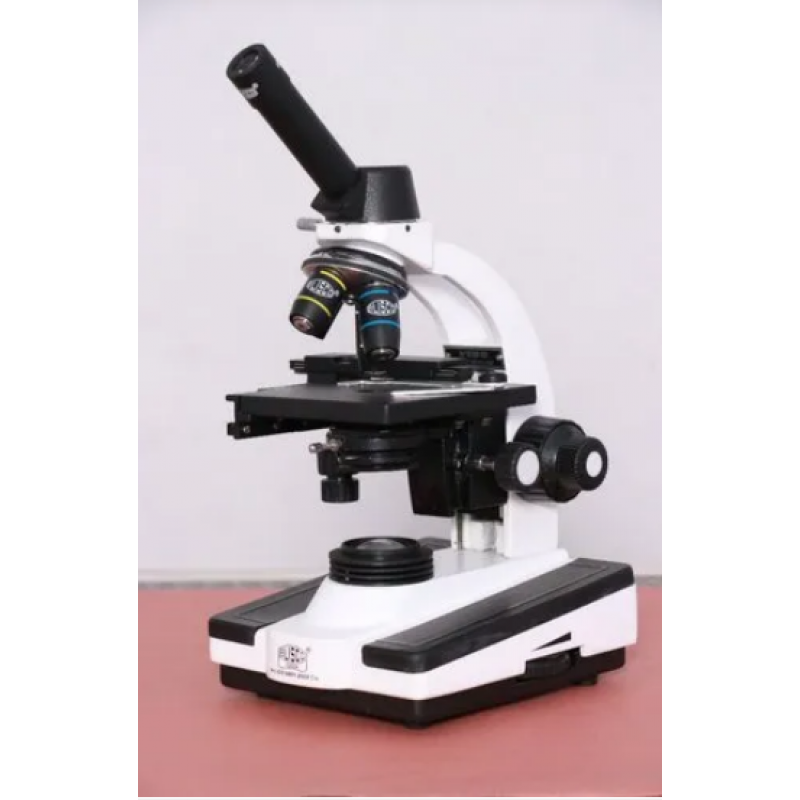

PATHOLOGICAL MONOCULAR MICROSCOPE

Light Source	LED
Model Name/Number	CXL-M
Brand	BLISCO

STANDARD MAIN FRAME: New C shaped Aluminum Die casted with white textured finish, antifungal PU paint.

OBSERVATION HEAD: Binocular observation tube inclined at 45° and Rotatable in 360° with perfectly centered quadruple revolving nose piece.

OPTICAL SYSTEM: DIN Standard Anti Fungal multi layered coated  Pre centered & Parafocaled   Achromatic objectives 4/5x, 10x, 40/ 45x, 100x (oil). & 10xWF, 5x or 15x Huy. (Any one) Eye piece.

MECHANICAL STAGE RECTANGULAR: A large Low drive coaxial mechanical stage 140x120 mm for X & Y movement with Sub stage bright field condenser N.A. 1.25 & iris diaphragm with built in swing out filter holder and up-down movement through rack & pinion.

FOCUSING MECHANISM: Separate Coarse & highly sensitive fine movement mechanical graduated to0.02mm. With locking device.

ILLUMINATION: Heavy rectangular sturdy base with built in illumination 6V-20W Halogen Lamp or Cool Bright Light LED Lamp.

PACKING: Microscope supplied one Plano concave mirror for use in day light, duster, cover & instruction manual.
