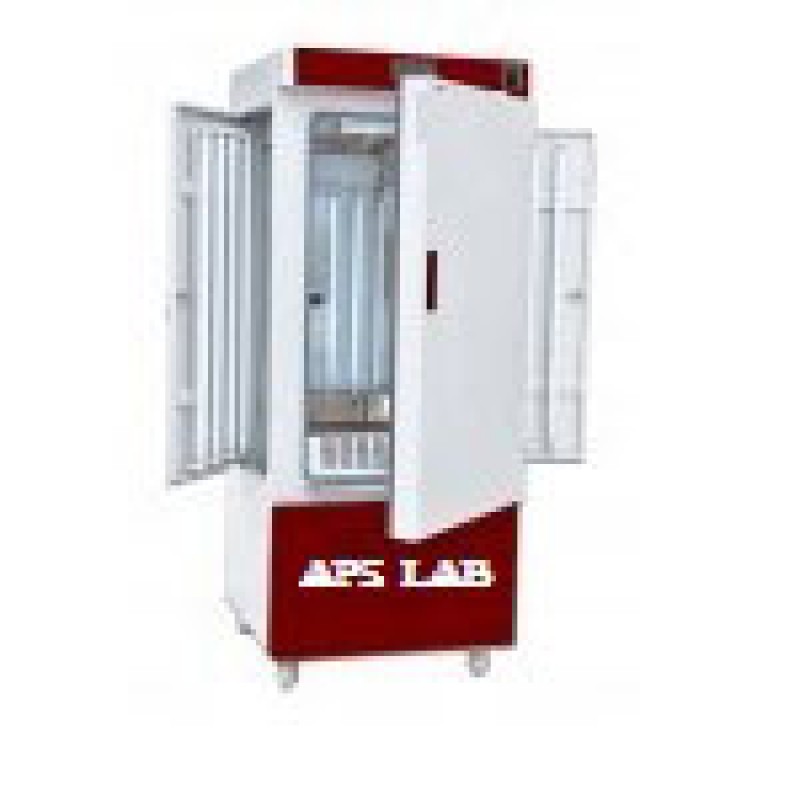

PLANT GROWTH CHAMBER REW-130
Product Details :
Many area of plant research require the use of a controller environment. In this way, a plant's response to different conditions can be monitored, or a particular habitat imitated. Standard propagation techniques can be greatly speeded up using a growth cabinet as well as achieving a higher success rate. Where micro propagation is being used a growth cabinet is essential for rooting the plantlets and adapting them to normal conditions. This plant growth cabinet is ideal for all routine propagation and research applications.
CONSTRUCTIONS
- With a solid see thru double walled door and a full
view inner plexi-glass door enables inspection and monitoring of inner
chamber specimens without distributing the process temperature.
- Excellent quality magnetic gum packing door gasket
for external door.
- User-oriented design of shelves makes you adjust
each space of shelves without difficulty.
- Forced air circulation at triple walled back by
durable coaxial blower, maintains optimum temperature uniformity and
homogeneity.
- Foamed-in-place PUF insulation ensures thermal
stability and reduces electrical energy consumption.
- Caster wheel mounted for easy portability.
- Front double walled door is provided with lock and
key arrangement.
- Door operated illumination lamp is fitted inside
the chamber for easy visibility.
- Finned tube evaporator facilitates uniform and
faster cooling effects.
- Safety Thermostate to prevent overheating.
- Fitted with exterior illumination with fluorescent
tubes/lamps.
- Works on 220/230 Volts AC (50/60 Hz frequency).
TECHNICAL SPECIFICATION & ORDERING INFORMATION
MODEL | #REW-4 | #REW-6 | #REW-10 | #REW-12 |
Dimension Inner (WxDxH) (in mm) | 455x410x610 | 505x415x830 | 570x550x875 | 650x580x900 |
Capacity | 112 ltrs | 171 ltrs | 280 ltrs | 340 ltrs |
Volume | 4.0 Cuft | 6.1Cuft | 10.0Cuft | 12.0Cuft |
MOC Outer | Powder coated CRC Steel Sheet | |||
MOC Inner | Chamber and trays made of Stainless Steel (SS-304) | |||
No. of Shelves | 2 | 2 | 3 | 3 |
Type | Forced Convection Type | |||
Freezer Compressor | Hermetically sealed air cooling compressor system | |||
Temperature Range | 10OC to 60OC | |||
Temperature Accuracy | +1OC | |||
Humidity Creation | Through sophisticated steam injection process. | |||
Humidity range | 5% above ambient from 40% to 95%RH at cool temperatures | |||
Humidity Accuracy | +3%RH | |||
Evaporator | Finned tube evaporator for faster cooling effects | |||
Safety | Over temperature limiter switch prevents overheating | |||
Insulation | Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption | |||
Illumination | Exterior illumination with fluorescent tubes/lamps. | |||
Temperature Controller | Fitted with MICROPROCESSOR BASED TEMPERATURE- HUMIDITY CONTROLLER CUM DATA LOGGER with 9 segments to enable users to Control nine different variation and repetition of temperature, illumination and humidity according to its conditions | |||
Humidity Controller | Digital Humidity Indicator-Cum-Controller | |||
Electrical Supply | 220/230V AC, 50/60Hz |
MODEL | #PGC-15 | #PGC-16 | #PGC-20 | #PGC-30 |
Dimension Inner (WxDxH) (in mm) | 700x640x900 | 700x640x970 | 775x775x900 | 825x825x1200 |
Capacity | 420 ltrs | 450 ltrs | 560 ltrs | 840 ltrs |
Volume | 15Cuft | 16 Cuft | 20.0Cuft | 30.0cuft |
MOC Outer | Powder coated CRC Steel Sheet | |||
MOC Inner | Chamber and trays made of Stainless Steel (SS-304) | |||
No. of Shelves | 4 | 4 | 4 | 4 |
Type | Forced Convection Type | |||
Freezer Compressor | Hermetically sealed air cooling compressor system | |||
Temperature Range | 10OC to 60OC | |||
Temperature Accuracy | +1OC | |||
Humidity Creation | Through sophisticated steam injection process. | |||
Humidity range | 5% above ambient from 40% to 95%RH at cool temperatures | |||
Humidity Accuracy | +3%RH | |||
Evaporator | Finned tube evaporator for faster cooling effects | |||
Safety | Over temperature limiter switch prevents overheating | |||
Insulation | Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption | |||
Illumination | Exterior illumination with fluorescent tubes/lamps. | |||
Temperature Controller | Fitted with MICROPROCESSOR BASED TEMPERATURE- HUMIDITY CONTROLLER CUM DATA LOGGER with 9 segments to enable users to Control nine different variation and repetition of temperature, illumination and humidity according to its conditions | |||
Humidity Controller | Digital Humidity Indicator-Cum-Controller | |||
Electrical Supply | 220/230V AC, 50/60Hz |
Options
Communication
port with interface and data cable to download data to your PC.
